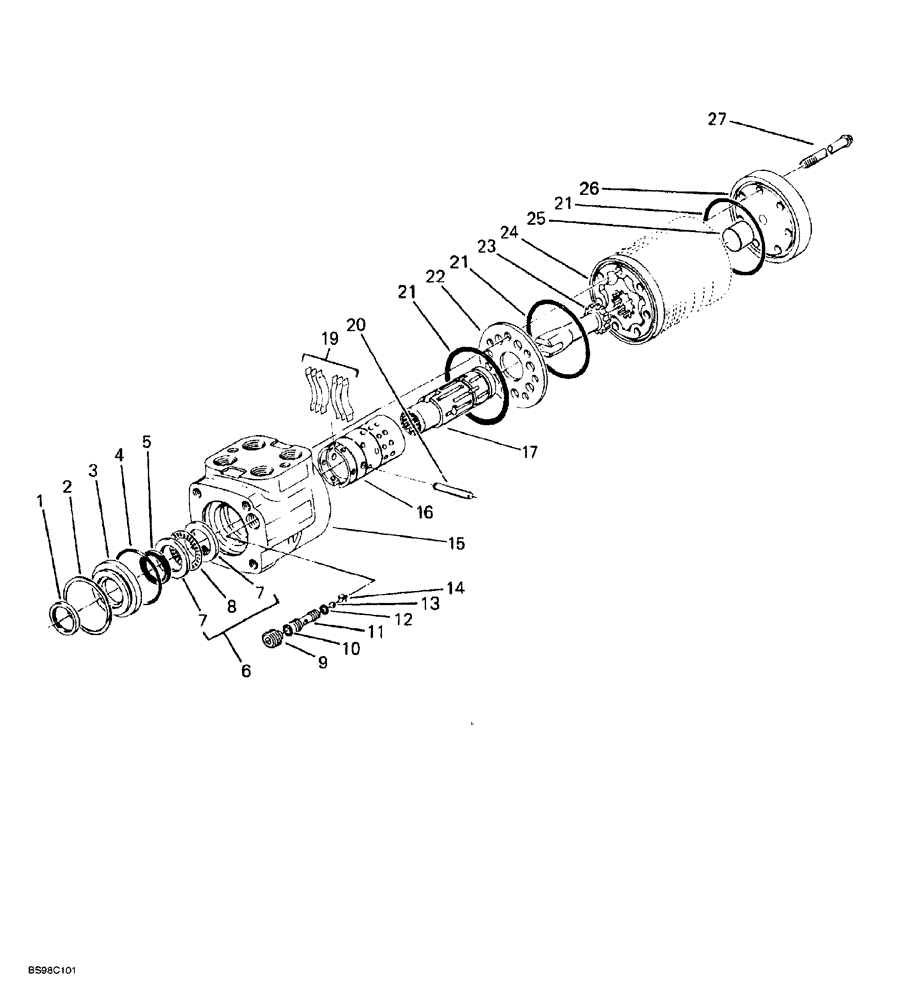

Запчасти Case 689G (05-08) - STEERING CONTROL VALVE ASSEMBLY (05) - STEERING

310296A1

VALVE

ASSEMBLY steering control, Includes: Ref. 1 - 27 and body assy.

1шт.

309154A1

CONTROL

BODY ASSEMBLY valve, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL wiper, gland

1шт.

Part of Seal Kit, P/N 310066A1

1шт.

2

310070A1

RING, SNAP

RING SNAP retaining, gland

1шт.

3

310067A1

BUSHING

GLAND spool

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Seal Kit, P/N 310066A1

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, Serial Range: gland-spool

1шт.

Part of Seal Kit, P/N 310066A1

1шт.

6

310064A1

NEEDLE BEARING

bearing, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

RACE thrust bearing

2шт.

8

NSS

NOT SOLD SEPARAT

BEARING thrust, needle

1шт.

9

310062A1

SET SCREW

set, body

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING check ball seat, outer

1шт.

Part of Seal Kit, P/N 310066A1

1шт.

11

310061A1

SEAT ASSY.

check ball

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING check ball seat, inner

1шт.

Part of Seal Kit, P/N 310066A1

1шт.

13

310059A1

BALL

check

1шт.

14

310058A1

RETAINER

check ball

1шт.

15

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE spool

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

19

309912A1

KIT

centering spring, includes six springs

1шт.

20

309149A1

PIN

, Serial Range: sleeve-spool

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING, valve body to gerotor, spacer and end cap

3шт.

Part of Seal Kit, P/N 310066A1

1шт.

22

310056A1

PLATE, SPACER

PLATE,SPACER

1шт.

23

309138A1

DRIVE SHAFT

gerotor

1шт.

24

310200A1

GEAR, BEVEL

BEVEL GEAR GEROTOR valve, two pieces

1шт.

25

310097A1

SPACER

drive shaft

1шт.

26

310055A1

CAP

end

1шт.

27

310201A1

BOLT

12 point

7шт.
