(04-32) - OPTIONAL WORK LIGHT AND SIGNAL LAMP INSTALLATION

Запчасти Case 689G (04-32) - OPTIONAL WORK LIGHT AND SIGNAL LAMP INSTALLATION (04) - ELECTRICAL SYSTEMS

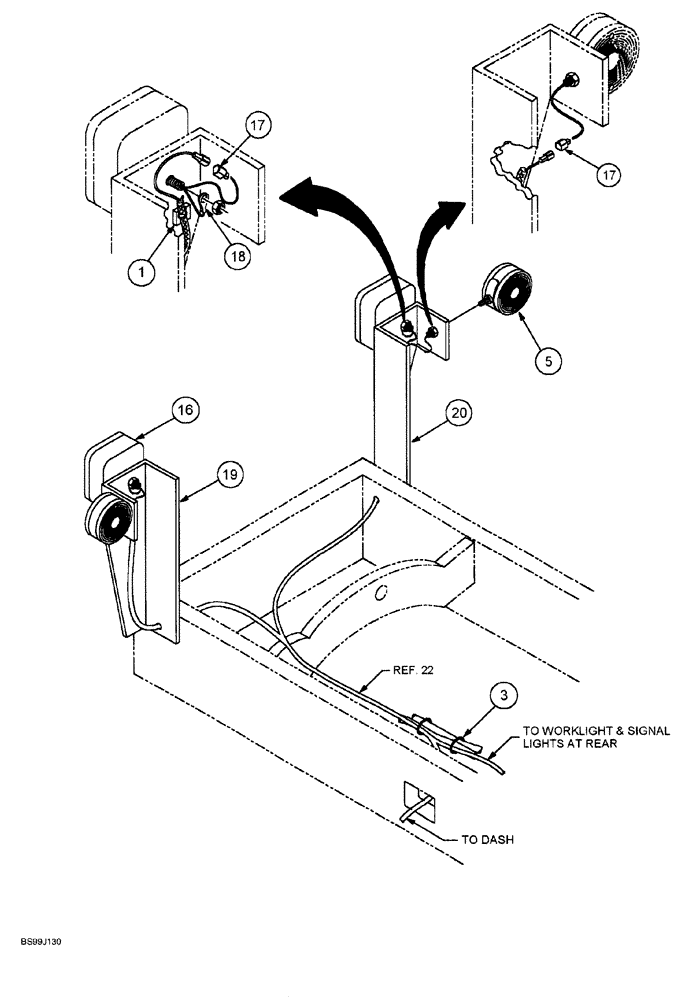

Схема запчастей Case 689G - (04-32) - OPTIONAL WORK LIGHT AND SIGNAL LAMP INSTALLATION (04) - ELECTRICAL SYSTEMS
17
17
1
19
20
3
16
18
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

310040A1

ADHESIVE

BLOCK mounting

8шт.

3

314799A1

FASTENER

STRAP tie

10шт.

5

310165A1

LIGHT

ASSEMBLY signal, Includes: Ref. 5A, 5B, 5C and 5D

4шт.

5a

309083A1

LENS

amber, not shown

1шт.

5b

309417A1

LENS

red, not shown

1шт.

5c

A41264

BULB,#1156, 12V

Lamp, Not shown

1шт.

5d

309418A1

HARNESS

lamp, not shown

1шт.

16

310166A1

LIGHT

ASSEMBLY head, Includes: Ref. 16A

4шт.

16a

314972A1

HEADLIGHT

not shown

1шт.

17

309207A1

CONNECTOR, ELEC

CONNECTOR electrical

8шт.

18

339631A1

TERMINAL CONNECTOR

EYELET electrical

4шт.

19

310317A1

BRACKET

light mounting

1шт.

20

310318A1

BRACKET

light mounting

1шт.
