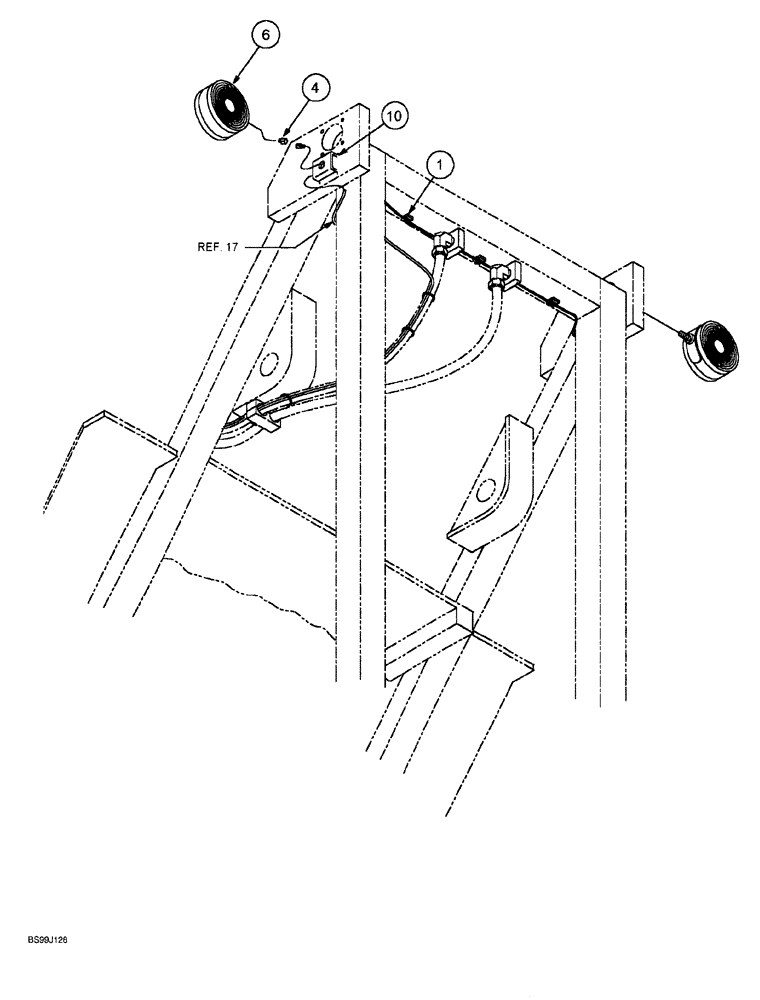

Запчасти Case 689G (04-28) - OPTIONAL SIGNAL LAMP INSTALLATION (04) - ELECTRICAL SYSTEMS

1

310040A1

ADHESIVE

BLOCK mounting

3шт.

4

309207A1

CONNECTOR, ELEC

CONNECTOR electrical

4шт.

6

310165A1

LIGHT

ASSEMBLY signal, Includes: Ref. 6A, 6B, 6C and 6D

4шт.

6a

309083A1

LENS

amber, not shown

1шт.

6b

309417A1

LENS

red, not shown

1шт.

6c

A41264

BULB,#1156, 12V

Lamp, Not shown

1шт.

6d

309418A1

HARNESS

lamp, not shown

1шт.

10

310316A1

CHANNEL

frame

2шт.
