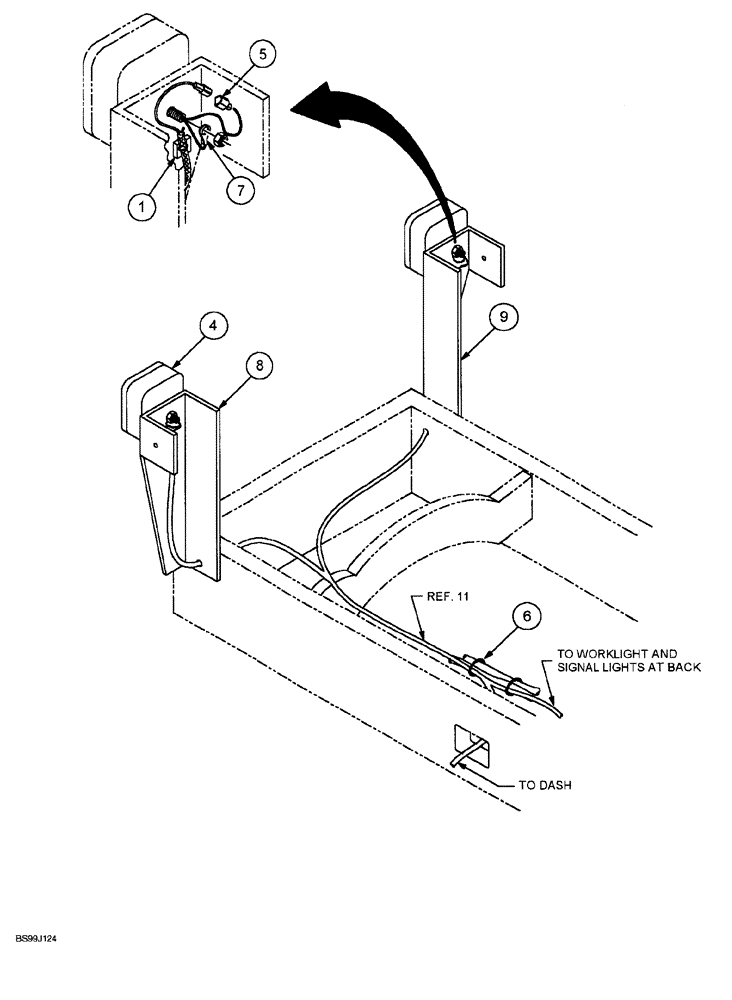

Запчасти Case 689G (04-20) - OPTIONAL WORK LIGHT INSTALLATION (04) - ELECTRICAL SYSTEMS

1

310040A1

ADHESIVE

BLOCK mounting

7шт.

4

310166A1

LIGHT

ASSEMBLY head, Includes: Ref. 4A

4шт.

4a

314972A1

HEADLIGHT

not shown

1шт.

5

309207A1

CONNECTOR, ELEC

CONNECTOR electrical

4шт.

6

314799A1

FASTENER

STRAP tie

10шт.

7

339631A1

TERMINAL CONNECTOR

EYELET electrical

4шт.

8

310317A1

BRACKET

light mounting, L. H.

1шт.

9

310318A1

BRACKET

light mounting, R. H.

1шт.
