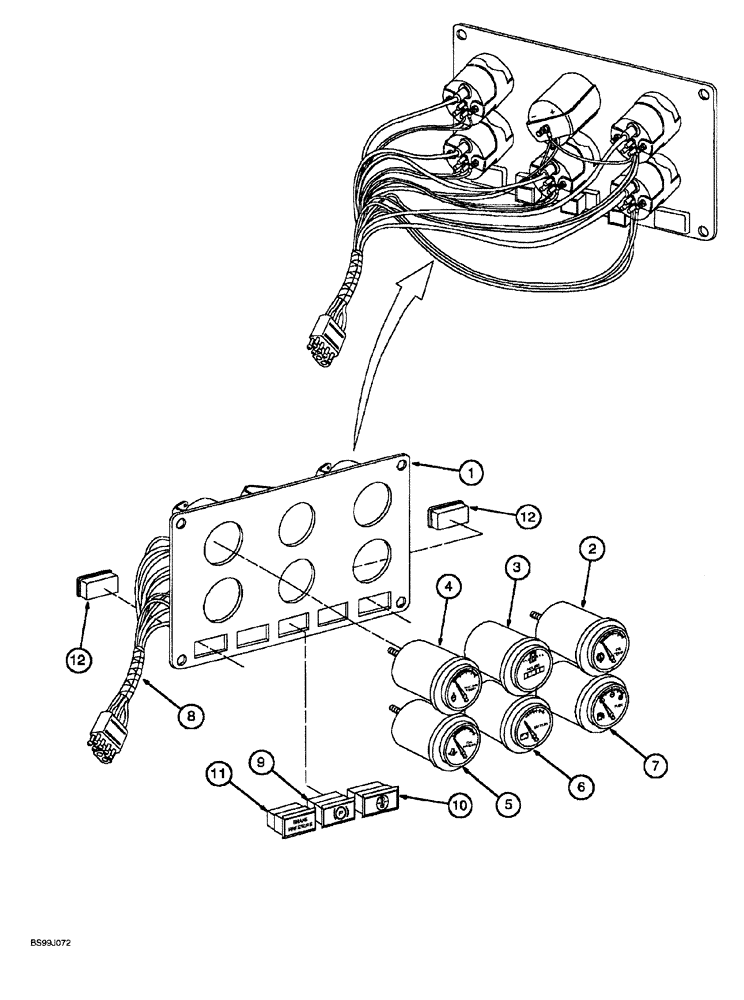

Запчасти Case 689G (04-16) - PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

310168A1

PLATE

mounting, gauges

1шт.

2

310386A1

GAUGE

transmission temperature

1шт.

3

309932A1

HOURMETER

GAUGE

1шт.

4

310401A1

GAUGE

water temperature

1шт.

5

310392A1

GAUGE

oil pressure

1шт.

6

309997A1

ELECTRICAL GAUGE

voltmeter

1шт.

7

310013A1

FUEL GAUGE

1шт.

8

310463A1

HARNESS

panel gauges

1шт.

9

310258A1

LIGHT

parking brake

1шт.

10

309222A1

LIGHT

hydraulic restrict

1шт.

11

310261A1

LIGHT

accumulated pressure

1шт.

12

309921A1

LIGHT

blank, Includes: Ref. 13

2шт.

13

310403A1

BULB

lamp, not shown

5шт.
