(04-10) - SWITCHES - PRESSURE AND PARKING BRAKE

Запчасти Case 689G (04-10) - SWITCHES - PRESSURE AND PARKING BRAKE (04) - ELECTRICAL SYSTEMS

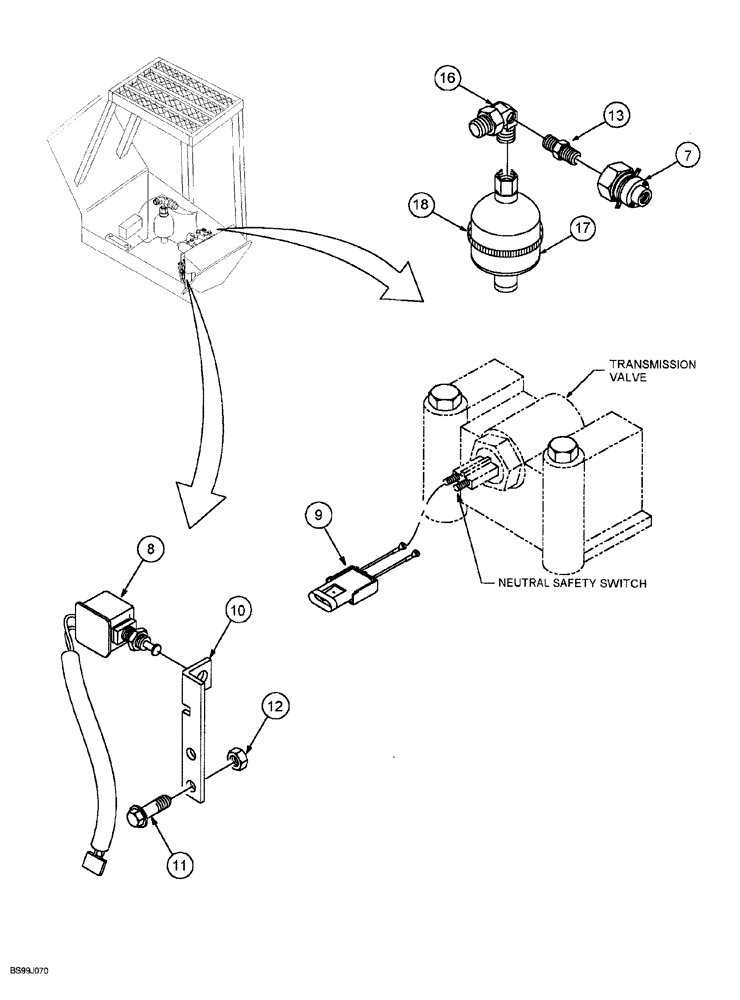

Схема запчастей Case 689G - (04-10) - SWITCHES - PRESSURE AND PARKING BRAKE (04) - ELECTRICAL SYSTEMS
16
17
7
13
8
11
9
12
18
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

7

310080A1

SWITCH

pressure, at accumulator

1шт.

8

317097A1

SWITCH

electrical parking brake

1шт.

9

309839A1

HARNESS

jumper wire

1шт.

10

309885A1

PLATE

mounting

1шт.

11

309995A1

BOLT

hex, self-locking, 5/16 NC x 3/4 inch

1шт.

12

309986A1

LOCK NUT

hex, 5/16 inch NC

1шт.

13

217-1079

HYD CONNECTOR,1/8" - 27 NPTF

NIPPLE hex, 1/8 PT x 1-1/16 inch

1шт.

16

310262A1

ADAPTER

TEE hydraulic

1шт.

17

339628A1

ACCUMULATOR

hydraulic

1шт.

18

310275A1

CLAMP

hose

1шт.
