(04-08) - BACKUP ALARM

Запчасти Case 689G (04-08) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

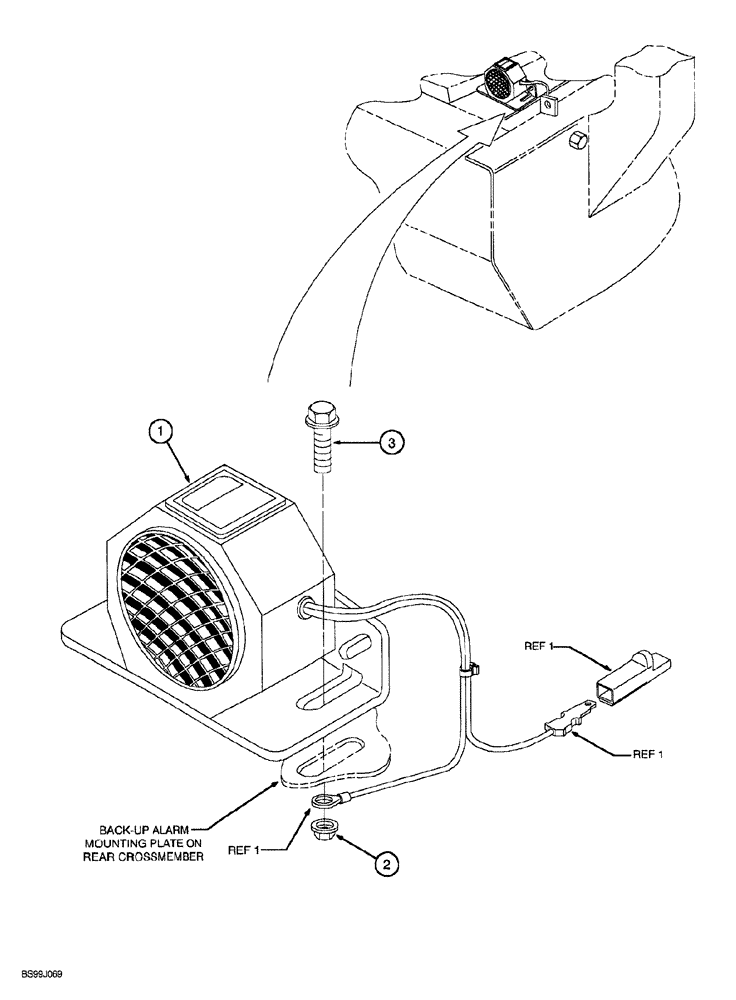

Схема запчастей Case 689G - (04-08) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

310405A1

ALARM

backup, Includes: Ref. 1A, 1B, 1C and 1D

1шт.

1a

310309A1

ALARM

backup, not shown

1шт.

1b

356700A1

TERMINAL CONNECTOR

eyelet, not shown

1шт.

1c

309908A1

CONNECTOR, ELEC

CONNECTOR electrical, not shown

1шт.

1d

309907A1

CONNECTOR, ELEC

CONNECTOR electrical, not shown

1шт.

2

309941A1

LOCK NUT

hex, 1/4 inch NC

2шт.

3

309935A1

BOLT

hex, self-locking, 1/4 NC x 3/4 inch

2шт.
