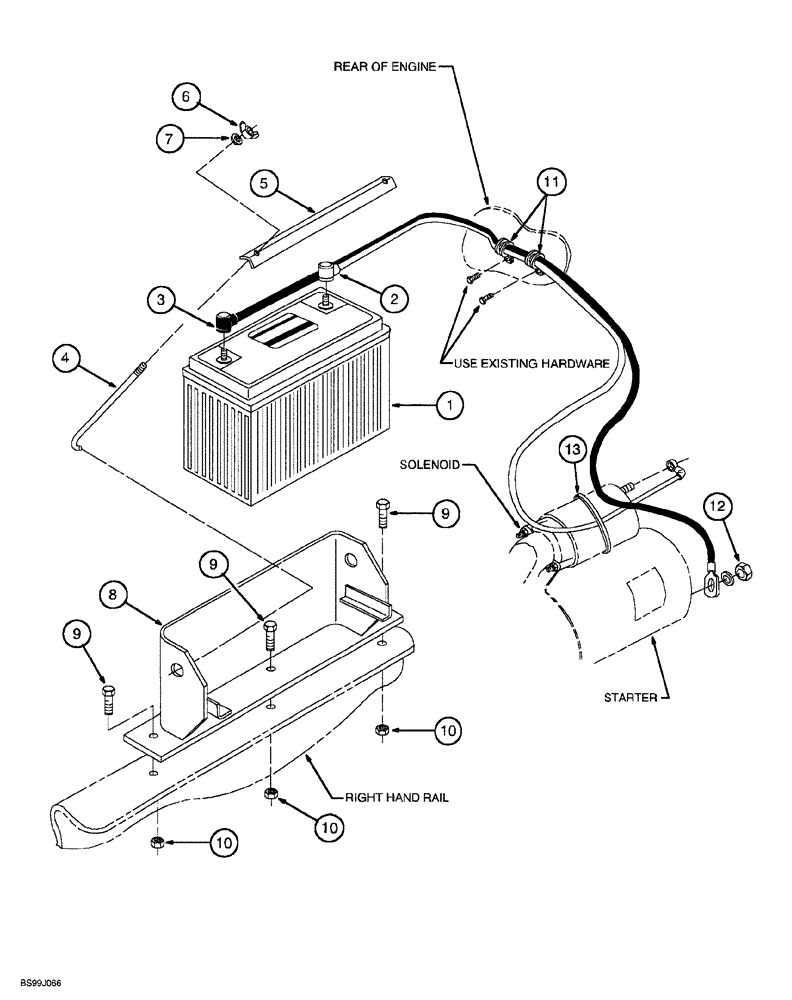

Запчасти Case 689G (04-02) - BATTERY, CABLES AND HARDWARE (04) - ELECTRICAL SYSTEMS

1

A186008

DRY BATTERY

12 volt

1шт.

2

309842A1

NEG BATTERY CABLE

1шт.

3

309844A1

NEG BATTERY CABLE

positive

1шт.

4

310456A1

SPECIAL BOLT

battery retaining, J type

2шт.

5

310270A1

BRACKET

battery hold down

1шт.

6

129-419

WING NUT,5/16"-18

2шт.

7

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

8

310324A1

BRACKET

battery box

1шт.

9

310363A1

BOLT

Ferry head, special

3шт.

10

310000A1

LOCK NUT

hex, 3/8 inch NC

3шт.

11

310019A1

CLAMP

hose

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

13

314799A1

FASTENER

STRAP tie

1шт.
