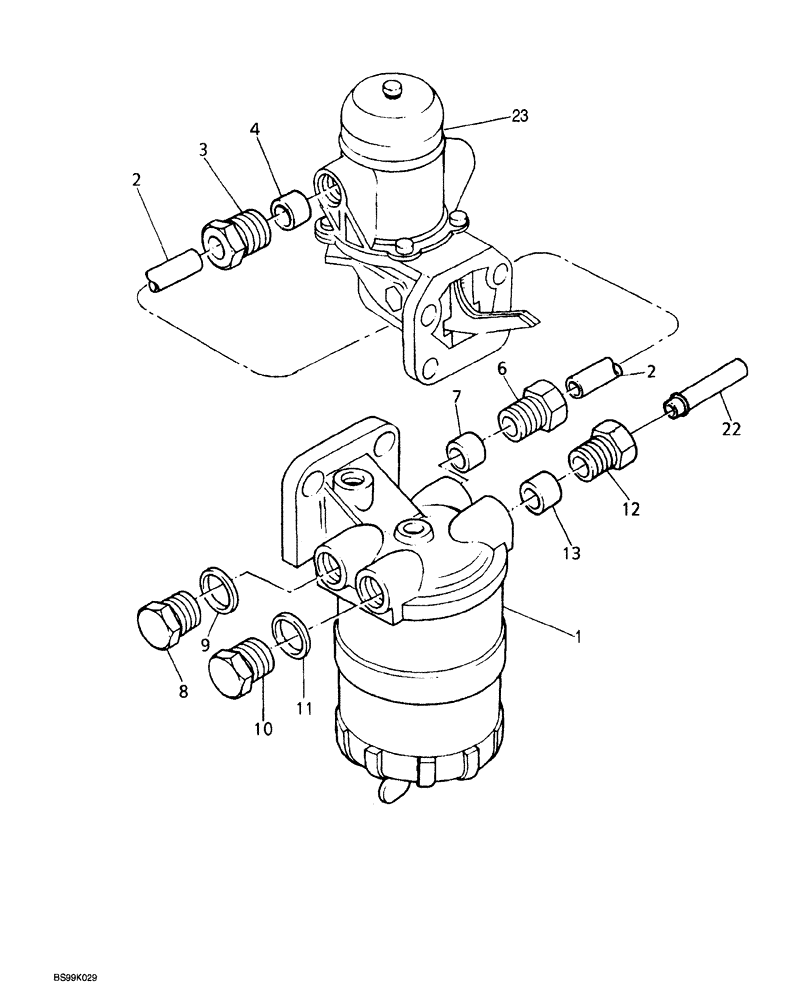

Запчасти Case 689G (03-18) - PRE-LIFT FUEL LINE AND WATER SEPARATOR (03) - FUEL SYSTEM

1

218118A1

FILTER, FUEL

SEPARATOR ASSEMBLY water, Includes: Ref. 1A, 1B, 1C and 1D

1шт.

1a

218120A1

O-RING

O-ring, not shown

1шт.

1b

218125A1

PLUG

port, not shown

1шт.

1c

218119A1

SEAL

bowl, not shown

1шт.

1d

218124A1

BOWL

water separator, not shown

1шт.

2

REF

INSTRUCTION

TUBE fuel line

1шт.

3

F62933

TUBE NUT

FITTING straight, tube compression

1шт.

4

F62934

OLIVE

SLEEVE compression

1шт.

6

F62933

TUBE NUT

FITTING straight, tube compression

1шт.

7

F62934

OLIVE

SLEEVE compression

1шт.

8

3118391R1

PLUG

hex

1шт.

9

796109R1

SEALING WASHER

plug

1шт.

10

3118391R1

PLUG

hex

1шт.

11

796109R1

SEALING WASHER

plug

1шт.

12

F62933

TUBE NUT

FITTING straight, tube compression

1шт.

13

F62934

OLIVE

SLEEVE compression

1шт.

22

REF

INSTRUCTION

TUBE fuel line

1шт.

23

REF

INSTRUCTION

PUMP ASSEMBLY fuel lift, parts list Figure 3-16

1шт.
