(03-16) - LIFT PUMP

Запчасти Case 689G (03-16) - LIFT PUMP (03) - FUEL SYSTEM

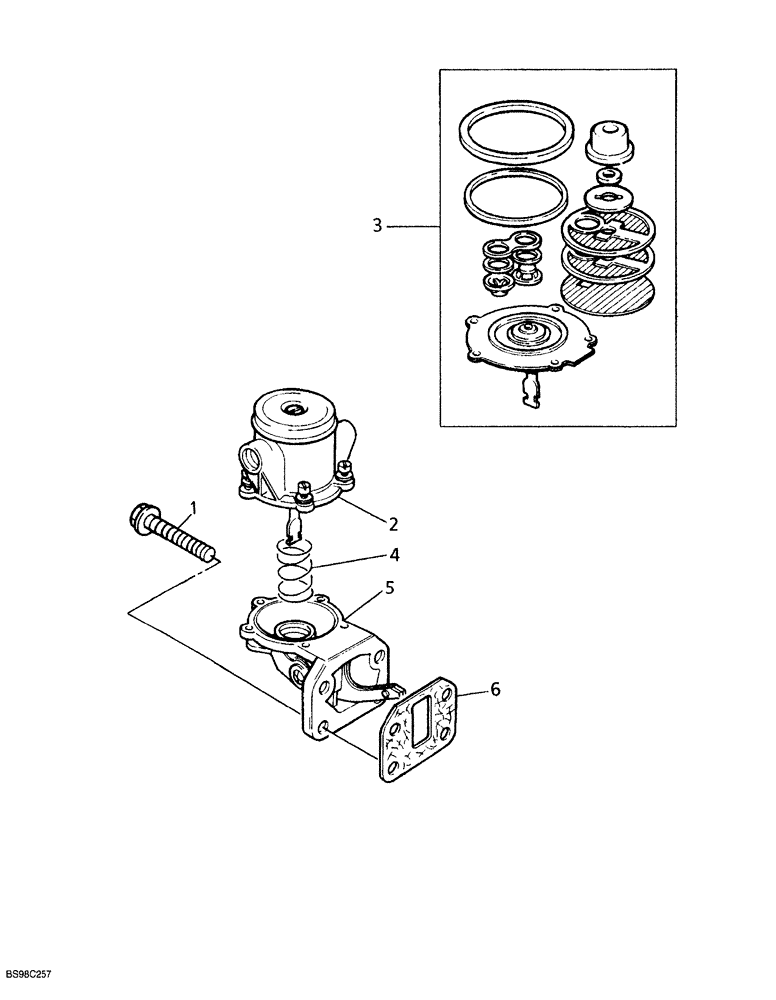

Схема запчастей Case 689G - (03-16) - LIFT PUMP (03) - FUEL SYSTEM
4
2
1
3
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

218021A1

SCREW

hex flange

4шт.

295976A1

FEED PUMP

ASSEMBLY lift, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY pump, Includes: Ref. 3

1шт.

3

285507A1

PACKAGE, REPAIR

pump cover assembly

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING pump

1шт.

5

NSS

NOT SOLD SEPARAT

BODY AND LEVER pump

1шт.

6

219760A1

GASKET

lift pump mounting

1шт.
