Запчасти Case 689G (03-14) - FUEL FILTER (03) - FUEL SYSTEM

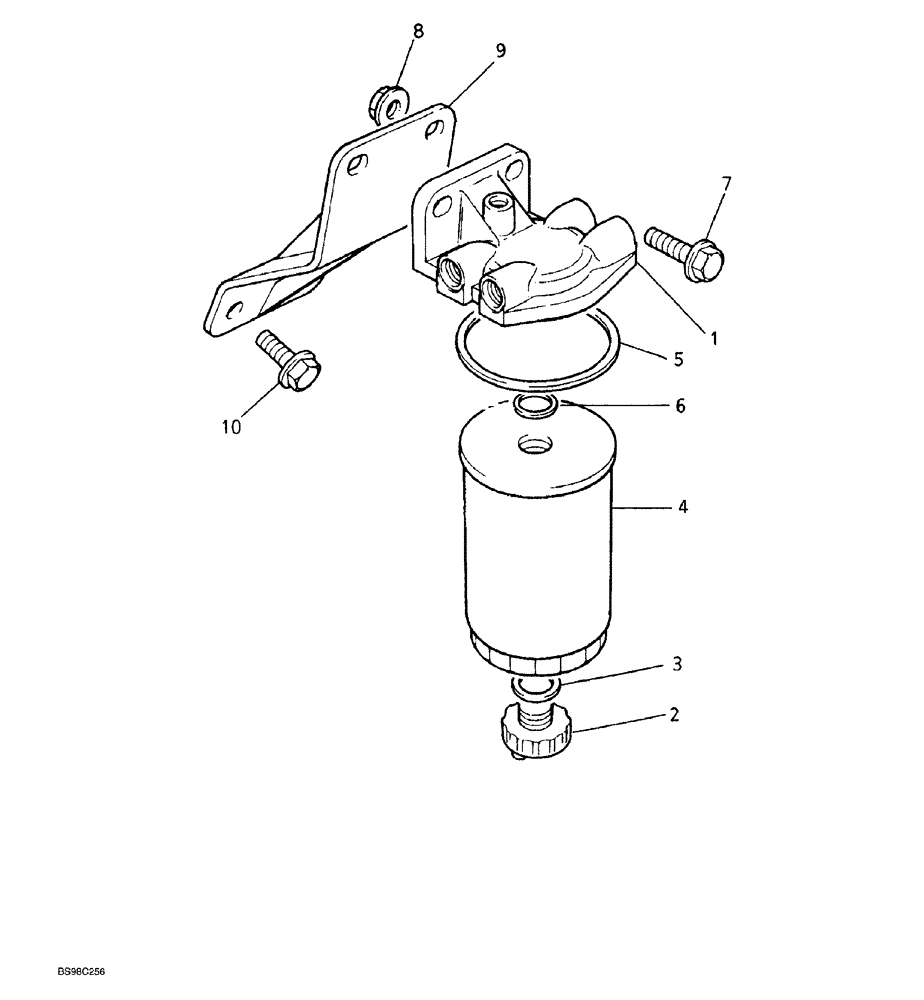

Схема запчастей Case 689G - (03-14) - FUEL FILTER (03) - FUEL SYSTEM
10
8
5
9
3
6
4
2
1
7

Артикул

Название

Примечание

Количество

293671A1

FILTER, FUEL

ASSEMBLY, Includes: Ref. 1 - 6

1шт.

1

314001A1

HEAD

filter

1шт.

218100A1

FUEL FILTER

ELEMENT ASSEMBLY fuel filter, Includes: Ref. 2 - 6

1шт.

2

293673A1

PLUG

BOLT special, element retaining

1шт.

3

293674A1

WASHER

GASKET, Serial Range: bolt-element

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT fuel filter

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET, Serial Range: element-head

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET, Serial Range: bolt-head

1шт.

7

218053A1

SCREW

hex flange

2шт.

8

217985A1

NUT

hex flange

2шт.

9

282126A1

SUPPORT

BRACKET filter mounting

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

Выбрано товаров: 12
