Запчасти Case 689G (03-12) - LOW PRESSURE FUEL LINES (03) - FUEL SYSTEM

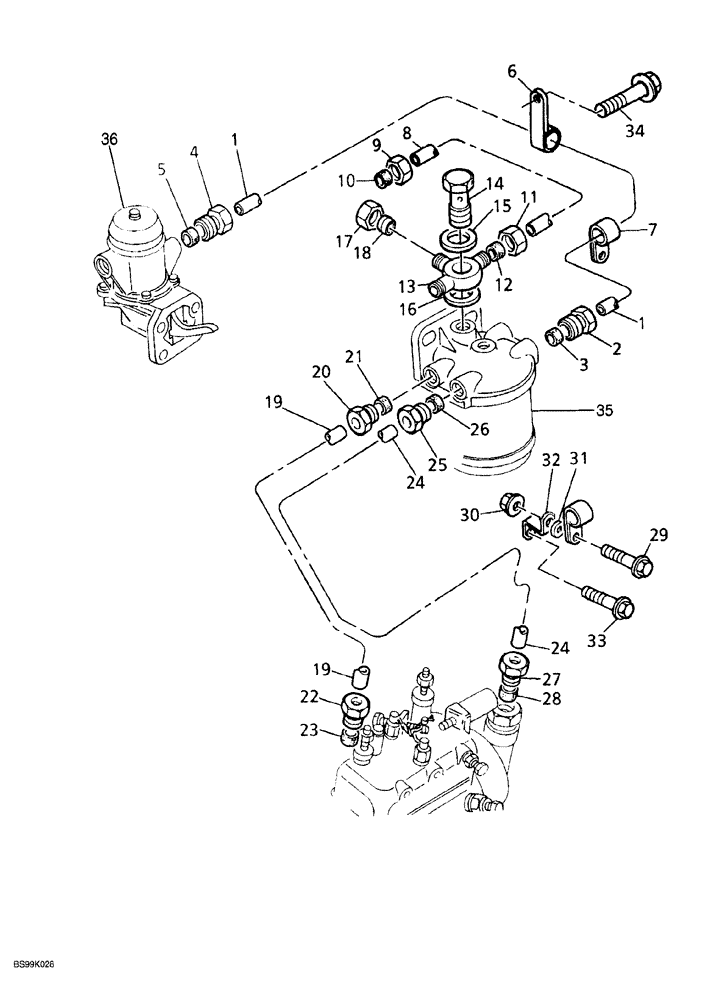

Схема запчастей Case 689G - (03-12) - LOW PRESSURE FUEL LINES (03) - FUEL SYSTEM
35
24
22
21
2
6
28
13
1
3
31
34
5
33
19
20
11
25
19
10
30
14
29
23
4
16
9
8
18
12
7
15
36
17
1
32
24
27
26

Артикул

Название

Примечание

Количество

293513A1

TUBE

ASSEMBLY fuel, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE fuel

1шт.

2

796197R1

NUT

FITTING straight, tube compression

1шт.

3

796199R1

OIL SEAL

SLEEVE compression

1шт.

4

796197R1

NUT

FITTING straight, tube compression

1шт.

5

796199R1

OIL SEAL

SLEEVE compression

1шт.

6

293507A1

MOUNTING CLIP

CLAMP tube

1шт.

7

293508A1

MOUNTING CLIP

CLAMP tube

1шт.

8

293504A1

PIPE

fuel line

1шт.

9

3107230R1

NUT

compression, tube

1шт.

10

3107231R1

SEALING RING

SEALRING SLEEVE compression

1шт.

11

3107230R1

NUT

compression, tube

1шт.

12

3107231R1

SEALING RING

SEALRING SLEEVE compression

1шт.

13

293497A1

UNION

TEE fuel line

1шт.

14

300178A1

BANJO BOLT

vent, fuel

1шт.

15

297781A1

WASHER

GASKET vent screw

2шт.

16

218603A1

SEALING WASHER

fuel line, Serial Range: tee-filter

1шт.

17

218177A1

NUT

compression tube

1шт.

18

F62934

OLIVE

SLEEVE compression

1шт.

293511A1

TUBE

ASSEMBLY fuel, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

TUBE fuel line

1шт.

20

796197R1

NUT

FITTING straight, tube compression

1шт.

21

796199R1

OIL SEAL

SLEEVE compression, fuel sender

1шт.

22

796197R1

NUT

FITTING straight, tube compression

1шт.

23

796199R1

OIL SEAL

SLEEVE compression

1шт.

293512A1

TUBE

ASSEMBLY fuel line, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

TUBE fuel line

1шт.

25

796197R1

NUT

FITTING straight, tube compression

1шт.

26

796199R1

OIL SEAL

SLEEVE compression

1шт.

27

796197R1

NUT

FITTING straight, tube compression

1шт.

28

796199R1

OIL SEAL

SLEEVE compression

1шт.

29

218048A1

SCREW

hex flange

1шт.

30

218401A1

NUT

hex flange

1шт.

31

282125A1

WASHER

flat

1шт.

32

282124A1

ANCHOR

BRACKET support, fuel line tube

1шт.

33

218002A1

SCREW

hex flange

1шт.

34

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

35

REF

INSTRUCTION

SEPARATOR ASSEMBLY water, parts list Figure 3-18

1шт.

36

REF

INSTRUCTION

PUMP ASSEMBLY fuel lift, parts list Figure 3-16

1шт.

Выбрано товаров: 39
