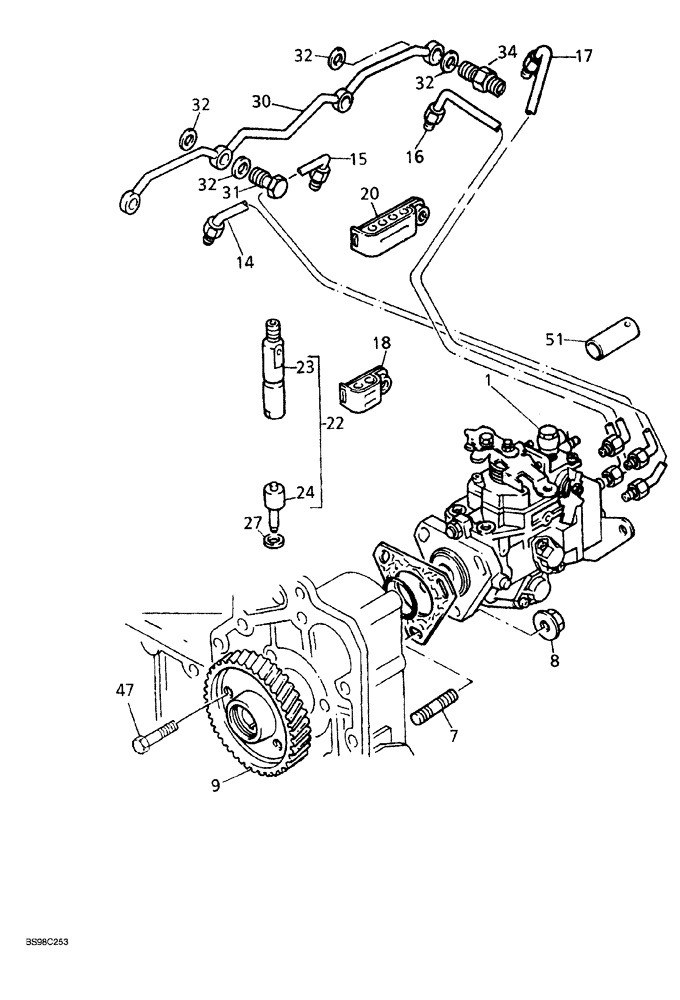

Запчасти Case 689G (03-08) - INJECTION PUMP AND TUBES (03) - FUEL SYSTEM

1

314664A1

PUMP

ASSEMBLY fuel injection

1шт.

7

218327A1

STUD

pump mounting

3шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

9

302671A1

PINION

GEAR fuel pump

1шт.

14

311775A1

TUBE ASSY.

fuel injection, number 1 cylinder, was 313561A1

1шт.

15

311776A1

TUBE ASSY.

fuel injection, number 2 cylinder, was 313562A1

1шт.

16

311777A1

TUBE ASSY.

fuel injection, number 3 cylinder, was 313563A1

1шт.

17

311778A1

TUBE ASSY.

fuel injection, number 4 cylinder, was 313564A1

1шт.

18

291975A1

ANCHOR

CLAMP tube, two lines

2шт.

20

291976A1

ANCHOR

CLAMP tube, four lines

1шт.

22

293185A1

NOZZLE INJECTION

ASSEMBLY fuel injection, Includes: Ref. 23 and 24

4шт.

23

293186A1

NOZZLE HOLDER

BODY injector

1шт.

24

293187A1

NOZZLE CAP

injector

1шт.

27

217795A1

WASHER

injector nozzle

4шт.

30

293144A1

PIPE

fuel return

1шт.

31

217964A1

BANJO BOLT

vent, fuel

3шт.

32

295973A1

WASHER

GASKET vent screw

8шт.

34

295974A1

FITTING

straight

1шт.

47

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

51

364351A1

CAP

tamper proof

1шт.
