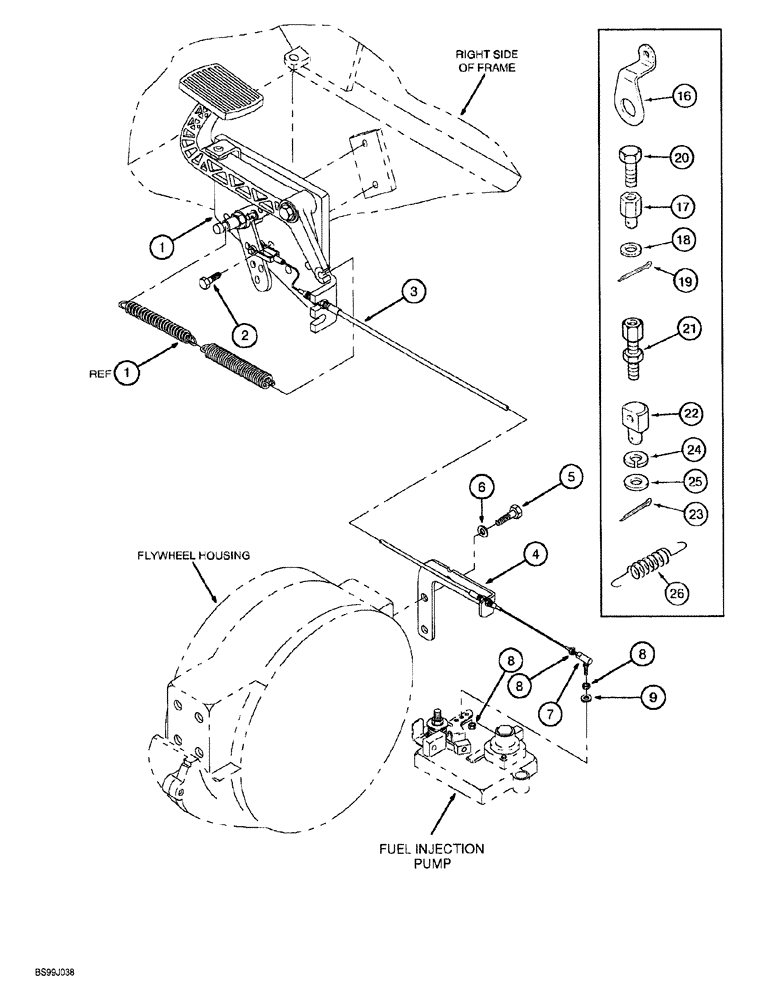

Запчасти Case 689G (03-04) - THROTTLE AND LINKAGE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PEDAL ASSEMBLY throttle, parts list page 3-7

1шт.

2

461-73812

HEX SOC SCREW,Btn Hd, 3/8"-16 x 3/4"

hex socket button 3/8 NC x 3/4 inch

2шт.

3

313402A1

CABLE

throttle control

1шт.

4

309893A1

BRACKET

support, throttle cable

1шт.

5

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Full threads

2шт.

6

310099A1

LOCK WASHER

2шт.

7

309909A1

BALL JOINT

1шт.

8

425-154

JAM NUT,Jam, 1/4"-28, G5

3шт.

9

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

16

218466A1

SUPPORT

BRACKET throttle

1шт.

17

218467A1

SPECIAL PIN

special

1шт.

18

218468A1

WASHER

flat

1шт.

19

218469A1

COTTER PIN

cotter

1шт.

20

218470A1

SCREW

hex

1шт.

21

218471A1

SCREW

adjuster

1шт.

22

218472A1

SPECIAL PIN

special

1шт.

23

218473A1

COTTER PIN

cotter

1шт.

24

218474A1

WASHER

lock

1шт.

25

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

1шт.

26

218476A1

SPRING

return

1шт.
