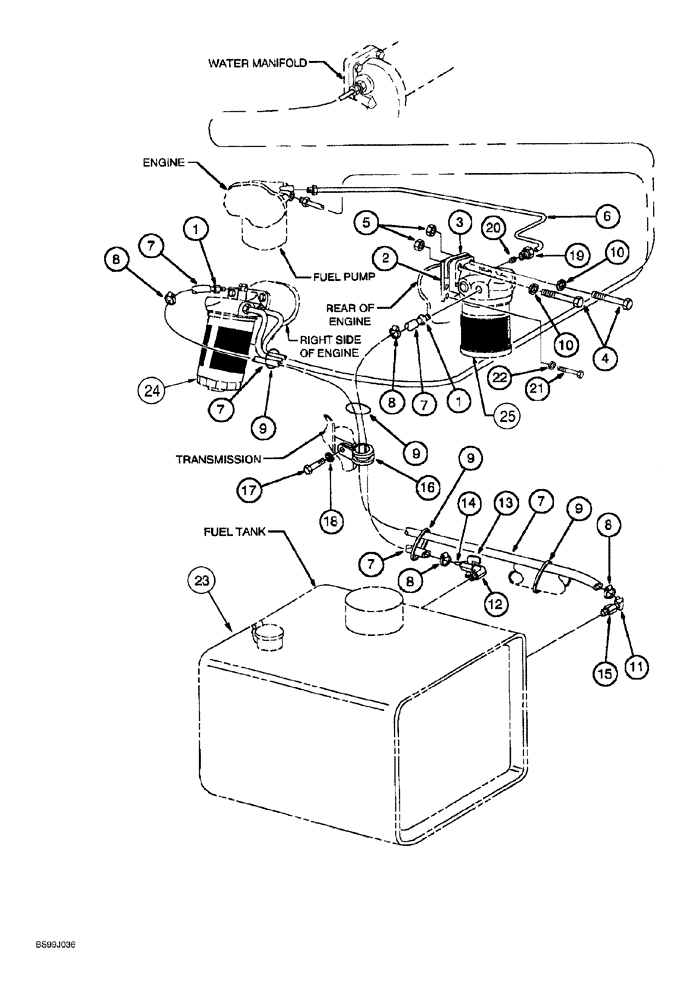

Запчасти Case 689G (03-02) - FUEL LINES (03) - FUEL SYSTEM

1

310440A1

FITTING

straight, hose barb

2шт.

2

309873A1

PLATE

filter mounting

1шт.

3

310268A1

PLATE, SPACER

PLATE,SPACER filter mounting

1шт.

4

426-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

2шт.

5

309986A1

LOCK NUT

hex, 5/16 inch NC

2шт.

6

310341A1

FUEL TUBE

fuel line, Serial Range: tank-pump

1шт.

7

310105A1

HOSE

fuel line, Serial Range: filter-separator

2шт.

8

309137A1

HOSE CLAMP

4шт.

9

317795A1

STRAP

tie

3шт.

10

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

11

310399A1

FITTING

hose

1шт.

12

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street

1шт.

13

310273A1

SHUT-OFF VALVE

fuel

1шт.

14

310350A1

FITTING

straight

2шт.

15

310445A1

ADAPTER

pipe

1шт.

16

310407A1

CLAMP

hose

1шт.

17

309934A1

BOLT

hex

1шт.

18

310099A1

LOCK WASHER

1шт.

19

339092A1

TUBE NUT

FITTING tube, straight

1шт.

20

349126A1

SLEEVE

tube fitting

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

22

89511010

PUBLICATIONS

flat, 11 x 20 x 2 mm

2шт.

23

REF

INSTRUCTION

TANK ASSEMBLY, diesel fuel, parts list page 3-3B

1шт.

24

REF

INSTRUCTION

FILTER ASSEMBLY fuel, parts list page 3 15

1шт.

25

REF

INSTRUCTION

SEPARATOR ASSEMBLY water, parts list page 3-1 9

1шт.
