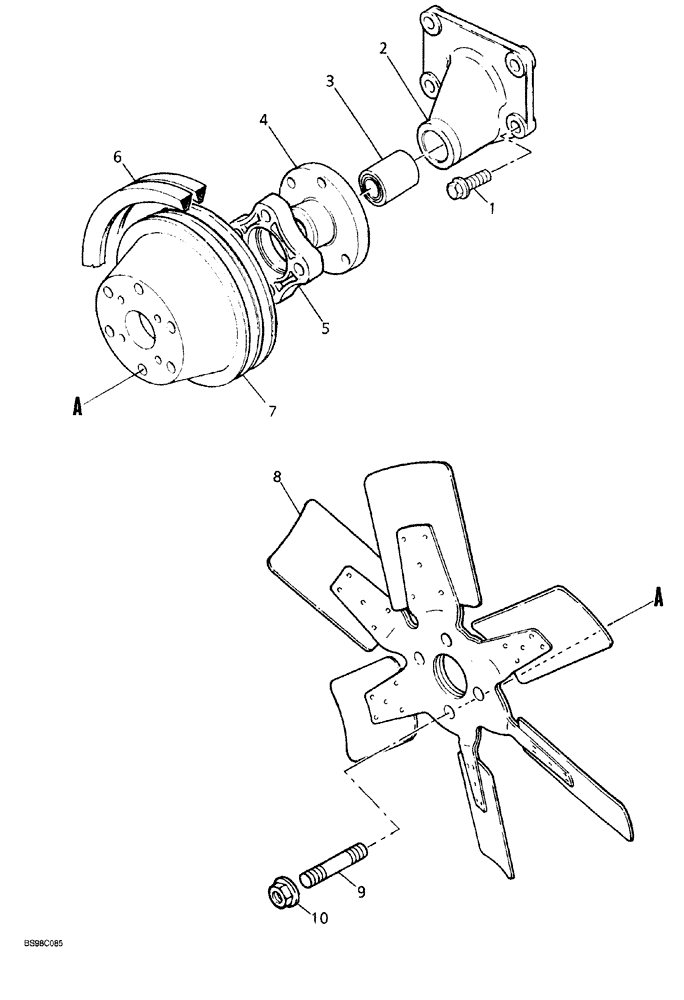

Запчасти Case 689G (02-42) - FAN AND MOUNTING (02) - ENGINE

1

218422A1

SCREW

hex flange

4шт.

314674A1

HOUSING ASSY.

fan drive, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING fan drive

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING housing

1шт.

4

NSS

NOT SOLD SEPARAT

HUB fan drive

1шт.

5

314761A1

EXTENSION

fan drive

1шт.

6

314675A1

SET OF BELTS

Fan serviced in pairs

1шт.

7

314676A1

PULLEY

fan

1шт.

8

314762A1

FAN

cooling

1шт.

9

315978A1

STUD

fan mounting

4шт.

10

315979A1

NUT

hex flange

4шт.

41

309878A1

GUARD ASSY.

fan, if used, not shown

2шт.

42

309935A1

BOLT

hex, self-locking, 1/4 NC x 3/4 inch, if used, not shown

4шт.

43

310203A1

BOLT

hex self-locking, if used, not shown

2шт.

44

309941A1

LOCK NUT

hex, self-locking, 1/4 inch NC, if used, not shown

2шт.
