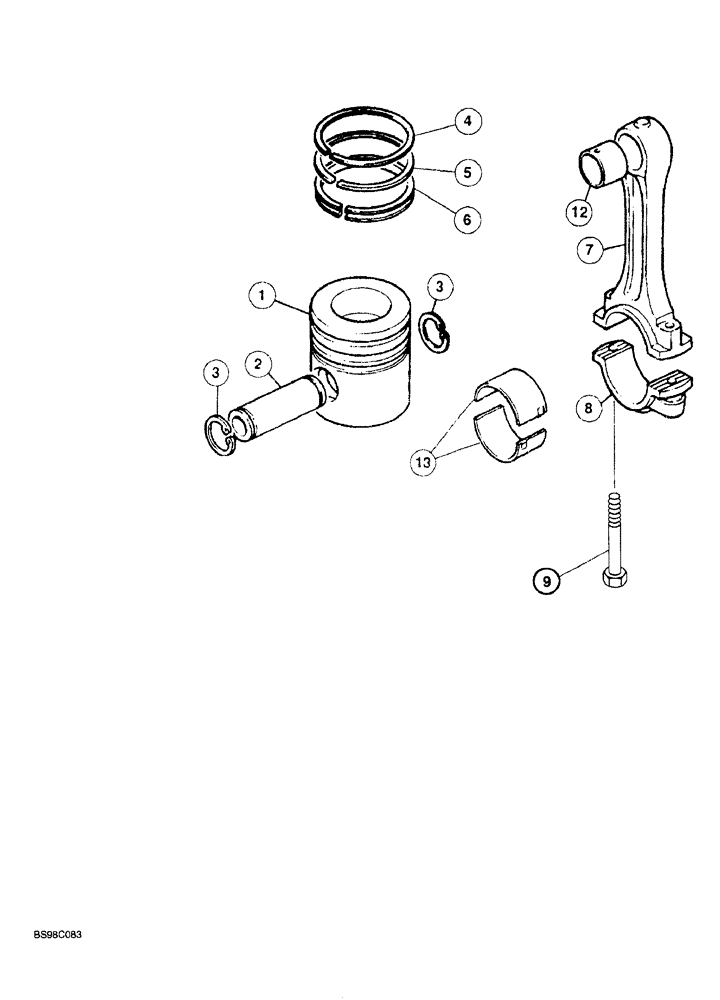

Запчасти Case 689G (02-38) - PISTONS AND CONNECTING RODS (02) - ENGINE

314399A1

PISTON ASSY.

cylinder, standard, Includes: Ref. 1 - 3

4шт.

1

NSS

NOT SOLD SEPARAT

PISTON cylinder

1шт.

2

NSS

NOT SOLD SEPARAT

PIN piston

1шт.

3

292992A1

RETAINER

RING retaining, piston pin

2шт.

293181A1

PISTON RING SET

Includes: Ref. 4 - 6

4шт.

4

NSS

NOT SOLD SEPARAT

RING piston, compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING piston, compression middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING piston, oil, bottom

1шт.

293202A1

PITMAN ASSY.

ROD connecting, prior to engine SN U876976D

4шт.

323428A1

ROD, CONNECTING

ASSEMBLY, Grade H, prior to engine SN U876976D

4шт.

323429A1

ROD, CONNECTING

ASSEMBLY, Grade L, prior to engine SN U876976D

4шт.

321638A1

ROD, CONNECTING

ASSEMBLY, Grade H, engine SN U876976D and after, Includes: Ref. 7 - 12

4шт.

321639A1

ROD, CONNECTING

ASSEMBLY, Grade J, engine SN U876976D and after, Includes: Ref. 7 - 12

4шт.

321640A1

ROD, CONNECTING

ASSEMBLY, Grade K engine SN U876976D and after, Includes: Ref. 7 - 12

4шт.

321642A1

LINK CONROD

ASSEMBLY, Grade L engine SN U876976D and after, Includes: Ref. 7 - 12

4шт.

7

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

8

NSS

NOT SOLD SEPARAT

CAP bearing

1шт.

9

292994A1

SCREW

hex

2шт.

10

293126A1

DOWEL

connecting rod, not shown

2шт.

12

293493A1

BUSHING

connecting rod

1шт.

13

218627A1

BEARING SET

KIT bearing, crankshaft, standard

1шт.

13

218628A1

BEARING SET

KIT bearing, crankshaft, 0.25 mm undersized

1шт.

13

218629A1

BEARING SET

KIT bearing, crankshaft, 0.50 mm undersized

1шт.

13

218630A1

BEARING SET

KIT bearing, crankshaft, 0.75 mm undersized

1шт.
