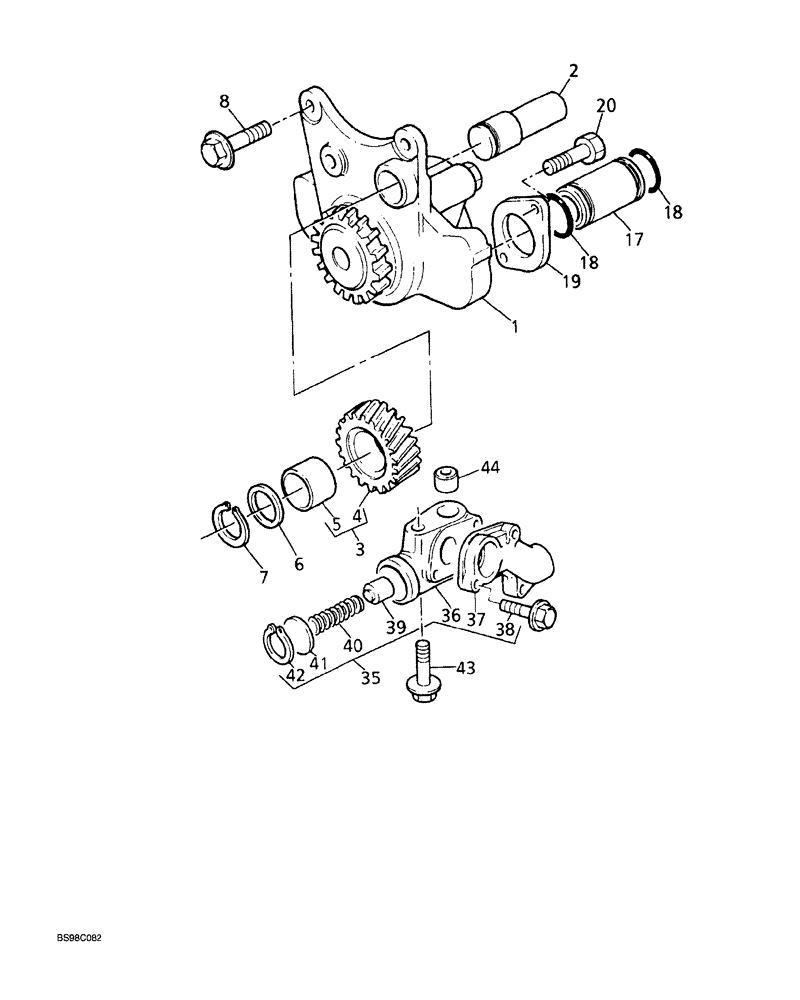

Запчасти Case 689G (02-36) - OIL PUMP AND VALVE (02) - ENGINE

1

281595A1

PUMP, ENGINE OIL

1шт.

2

291968A1

SHAFT

oil pump

1шт.

3

218308A1

PINION

GEAR ASSEMBLY idler, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR idler

1шт.

5

218309A1

BUSHING

idler gear

1шт.

6

218310A1

WASHER

flat

1шт.

7

218311A1

CIRCLIP

retaining, Serial Range: gear-shaft

1шт.

8

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

17

218319A1

TUBE

oil

1шт.

18

218320A1

O-RING

oil pipe

2шт.

19

218321A1

SHIN

FLANGE pipe

1шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

35

218667A1

VALVE

ASSEMBLY relief, Includes: Ref. 36 - 42

1шт.

36

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

37

NSS

NOT SOLD SEPARAT

COVER valve

1шт.

38

281599A1

SCREW

hex flange

3шт.

39

218313A1

PLUNGER

valve

1шт.

40

218314A1

SPRING

return

1шт.

41

218315A1

SPRING SEAT

1шт.

42

218316A1

CIRCLIP

retaining

1шт.

43

844-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 8.8

heavy hex flange 10-1.5 x 65 mm

1шт.

44

291969A1

BLANK-OFF PLUG

port

1шт.
