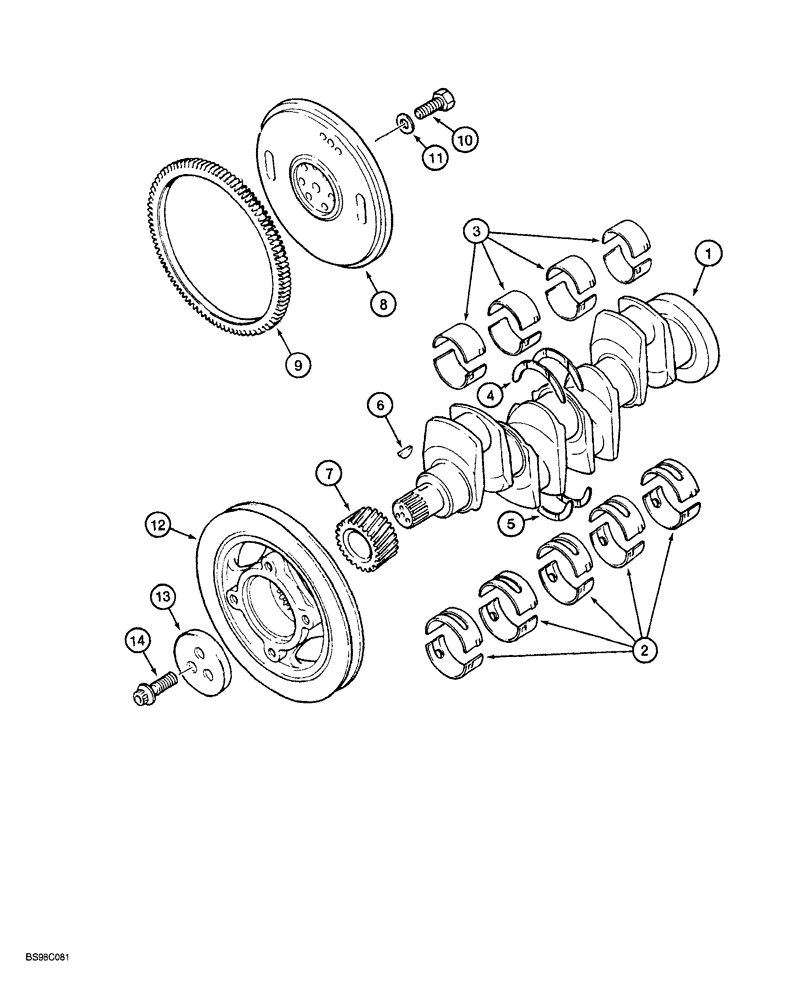

Запчасти Case 689G (02-34) - CRANKSHAFT (02) - ENGINE

314651A1

KIT

CRANKSHAFT ASSEMBLY engine, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT - engine

1шт.

2

3118150R1

BEARING SET

KIT crankshaft standard

1шт.

2

3118151R1

BEARING SET

KIT crankshaft, 0.25 mm undersized

1шт.

2

3118152R1

BEARING SET

KIT crankshaft, 0.50 mm undersized

1шт.

2

3118153R1

BEARING SET

KIT crankshaft 0.75 mm undersized

1шт.

3

218627A1

BEARING SET

KIT bearing, crankshaft, standard

1шт.

3

218628A1

BEARING SET

KIT bearing, crankshaft, 0.25 mm undersized

1шт.

3

218629A1

BEARING SET

KIT bearing, crankshaft 0.50 mm undersized

1шт.

3

218630A1

BEARING SET

KIT bearing, crankshaft, 0.75 mm undersized

1шт.

4

218292A1

THRUST WASHER

thrust, standard

2шт.

4

F62448

WASHER, THRUST

0.19 mm oversized

2шт.

5

218294A1

THRUST WASHER

thrust, standard

2шт.

5

F62450

WASHER, THRUST

0.19 mm oversized

2шт.

6

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

7

218303A1

PINION

GEAR crankshaft

1шт.

314672A1

FLYWHEEL WITH GEAR

ASSEMBLY engine, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

FLYWHEEL engine

1шт.

9

218497A1

SLEWING RING

GEAR

1шт.

10

218498A1

BOLT

hex

6шт.

11

218499A1

WASHER

flat

6шт.

12

218537A1

PULLEY

crankshaft

1шт.

13

218538A1

LARGE PLATE

PLATE, LARGE BLOCK pully retaining

1шт.

14

218539A1

SCREW

12 point

3шт.
