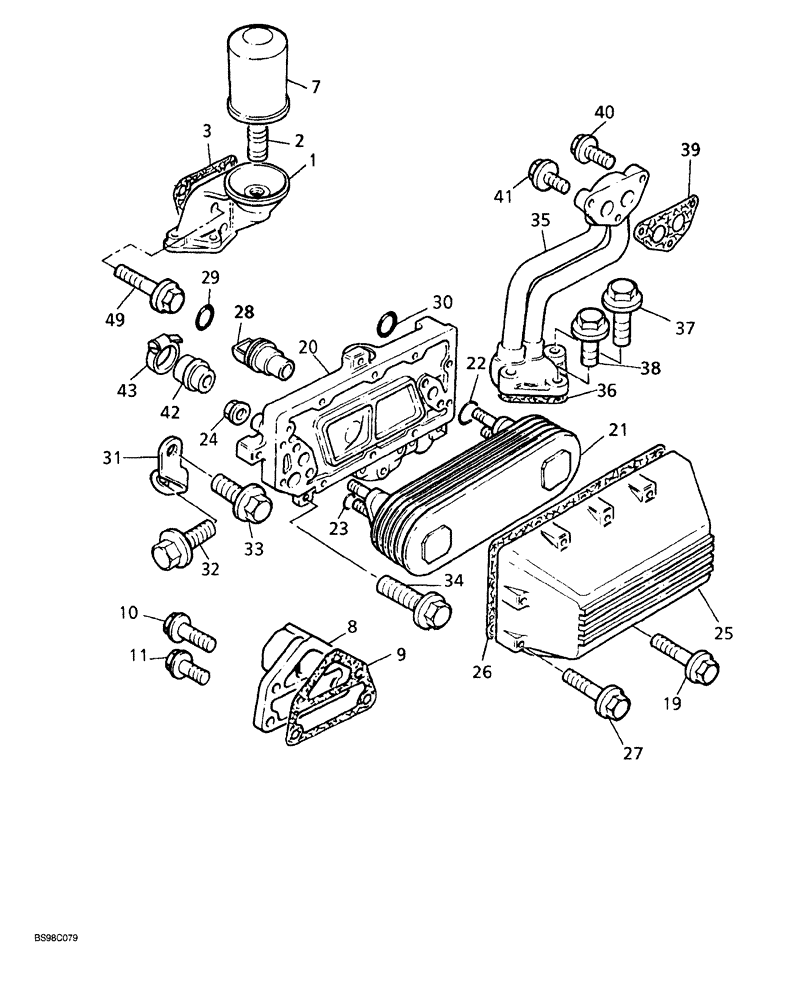

Запчасти Case 689G (02-30) - OIL COOLER AND FILTER (02) - ENGINE

1

314686A1

HEAD ASSY.

filter

1шт.

2

218719A1

FITTING

straight, filter

1шт.

3

218651A1

GASKET

1шт.

7

3214797R1

FILTER, ENGINE OIL

FILTER, OIL engine

1шт.

8

314687A1

ADAPTER

special

1шт.

9

218651A1

GASKET

1шт.

10

293009A1

SCREW

hex flange

1шт.

11

218652A1

SCREW

hex flange

3шт.

314688A1

COOLER ASSY.

oil, Includes: Ref. 19 - 28

1шт.

19

219771A1

SCREW

hex flange

2шт.

20

NSS

NOT SOLD SEPARAT

HOUSING cooler

1шт.

21

318169A1

COOLER, OIL

1шт.

22

285436A1

O-RING

, Serial Range: core-housing

2шт.

23

318170A1

O-RING

, Serial Range: core-housing

4шт.

24

318171A1

FLANGE NUT

hex flange

4шт.

25

318172A1

COVER

oil cooler

1шт.

26

318173A1

GASKET

cooler cover

2шт.

27

281299A1

SHIM

BOLT hex flange

8шт.

28

318174A1

CONNECTOR, ELEC

CONNECTOR straight, special

1шт.

29

314689A1

O-RING

connector

1шт.

30

314690A1

O-RING

cooler housing

1шт.

31

314691A1

BRACKET

cooler support

1шт.

32

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

33

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

34

218054A1

SCREW

hex flange

4шт.

35

314692A1

TUBE

oil

1шт.

36

314693A1

GASKET

tube, cooler end

1шт.

37

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

Heavy

2шт.

38

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

39

314693A1

GASKET

tube, cooler end

1шт.

40

218054A1

SCREW

hex flange

2шт.

41

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

42

314694A1

CONNECTION

special, straight

1шт.

43

314695A1

CLIP

hose

1шт.

49

316450A1

SCREW

hex flange

4шт.
