Запчасти Case 689G (02-28) - CYLINDER HEAD COVER (02) - ENGINE

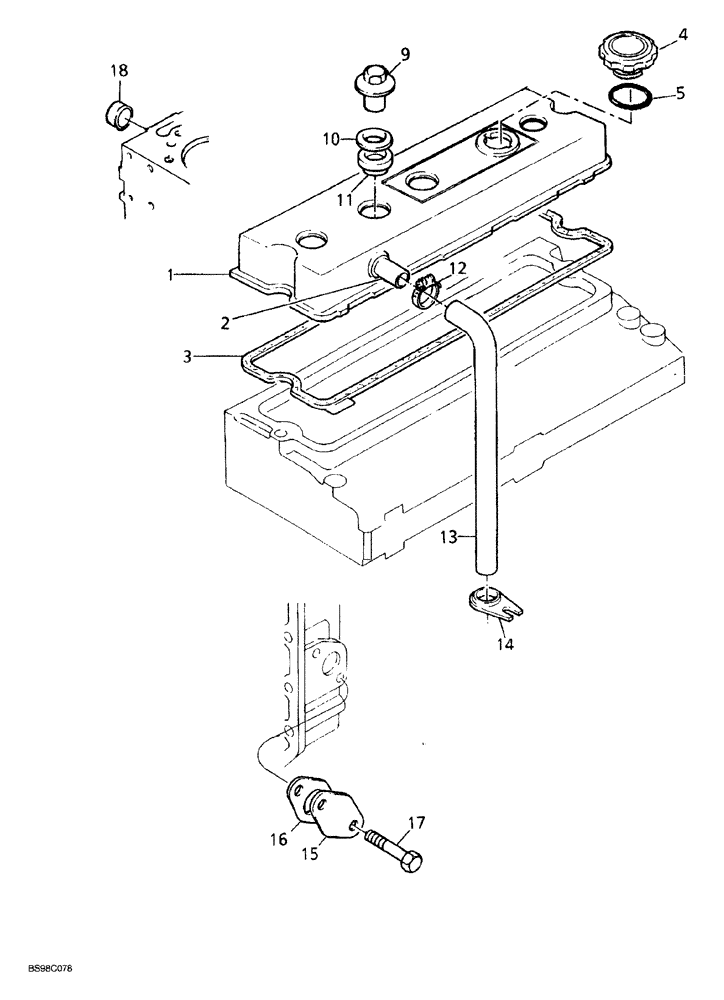

Схема запчастей Case 689G - (02-28) - CYLINDER HEAD COVER (02) - ENGINE
1
16
14
18
9
15
10
2
3
5
17
12
4
13
11

Артикул

Название

Примечание

Количество

1

314682A1

COVER ASSY

cylinder head, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

COVER cylinder head

1шт.

3

313735A1

GASKET

cover

1шт.

286044A1

PLUG

CAP ASSEMBLY oil fill, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

CAP oil fill

1шт.

5

281623A1

O-RING

oil fill cap

1шт.

9

281628A1

NUT

RETAINER cylinder head cover

3шт.

10

3115512R1

WASHER

special

3шт.

11

281629A1

OIL SEAL

cover retainer

3шт.

12

218655A1

CLAMP

hose

1шт.

13

314683A1

VENTILATION PIPE

oil breather, prior to engine P.I.N. U809627C

1шт.

13

218521A1

PIPE

oil breather, engine P.I.N. U809627C and after

1шт.

14

218523A1

SUPPORT

BRACKET tube

1шт.

15

314684A1

PLATE

cover

1шт.

16

314685A1

GASKET

cover plate

1шт.

17

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

18

291952A1

PLUG

frost

1шт.

Выбрано товаров: 17
