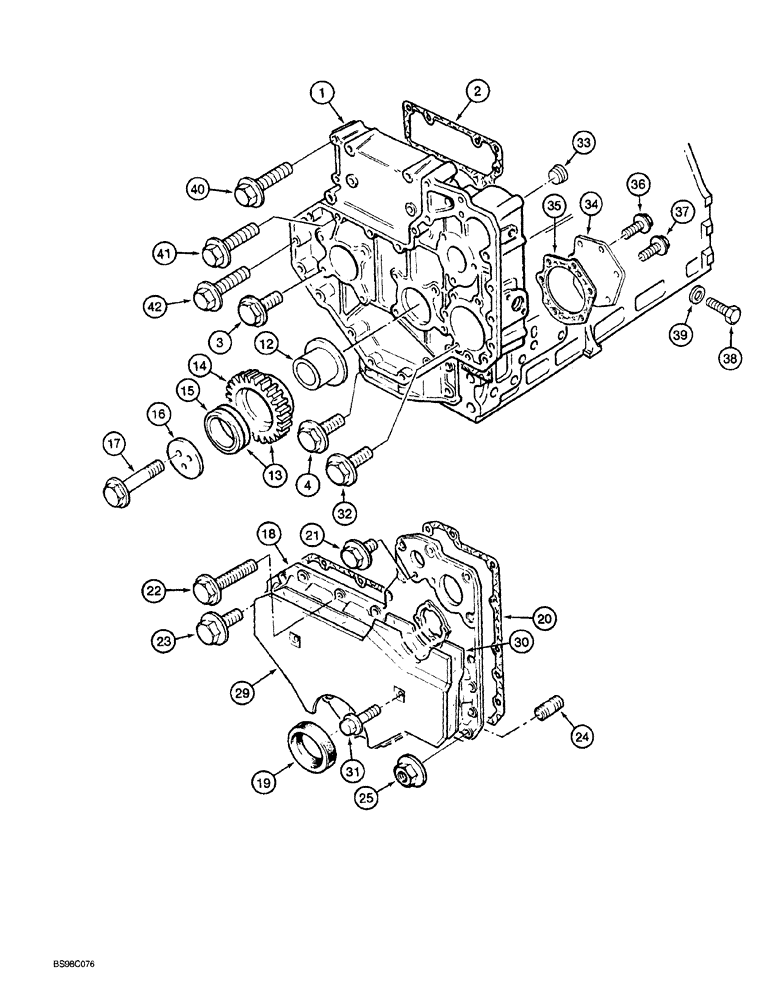

Запчасти Case 689G (02-22) - FRONT COVERS AND IDLER GEAR (02) - ENGINE

1

314658A1

HOUSING

timing gear

1шт.

2

314659A1

SEAL

gear, Serial Range: housing-block

1шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

4

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

12

218369A1

HUB

gear

1шт.

13

218370A1

PINION

GEAR ASSEMBLY idler, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR idler

1шт.

15

F62671

BUSHING

Idler gear

1шт.

16

281585A1

LARGE PLATE

PLATE, LARGE BLOCK gear retaining

1шт.

17

218373A1

SCREW

hex flange

3шт.

18

314660A1

COVER ASSY

timing gear, Includes: Ref. 19

1шт.

19

218375A1

SEAL

cover

1шт.

20

314661A1

SEAL

cover

1шт.

21

218069A1

SCREW

hex flange

6шт.

22

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

23

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

7шт.

24

218327A1

STUD

cover mounting

2шт.

25

217946A1

NUT

hex flange

2шт.

29

314662A1

SHIELD

cover

1шт.

30

314663A1

DAMPER

cover

1шт.

31

218382A1

SCREW

hex flange

2шт.

32

218053A1

SCREW

hex flange

1шт.

33

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

square socket, magnetic 1/2 inch PT

1шт.

34

314765A1

PLATE

cover

1шт.

35

314766A1

GASKET

plate

1шт.

36

218279A1

SCREW

hex flange

5шт.

37

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

38

864-10014

HEX SOC SCREW,M10 x 14mm, Cl 8.8

hex socket, 10-1.5x14 mm, for compressor/exhaust oil feed hole

1шт.

39

F62657

WASHER

flat

1шт.

40

218069A1

SCREW

hex flange

2шт.

41

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

42

281653A1

SCREW

hex flange

1шт.
