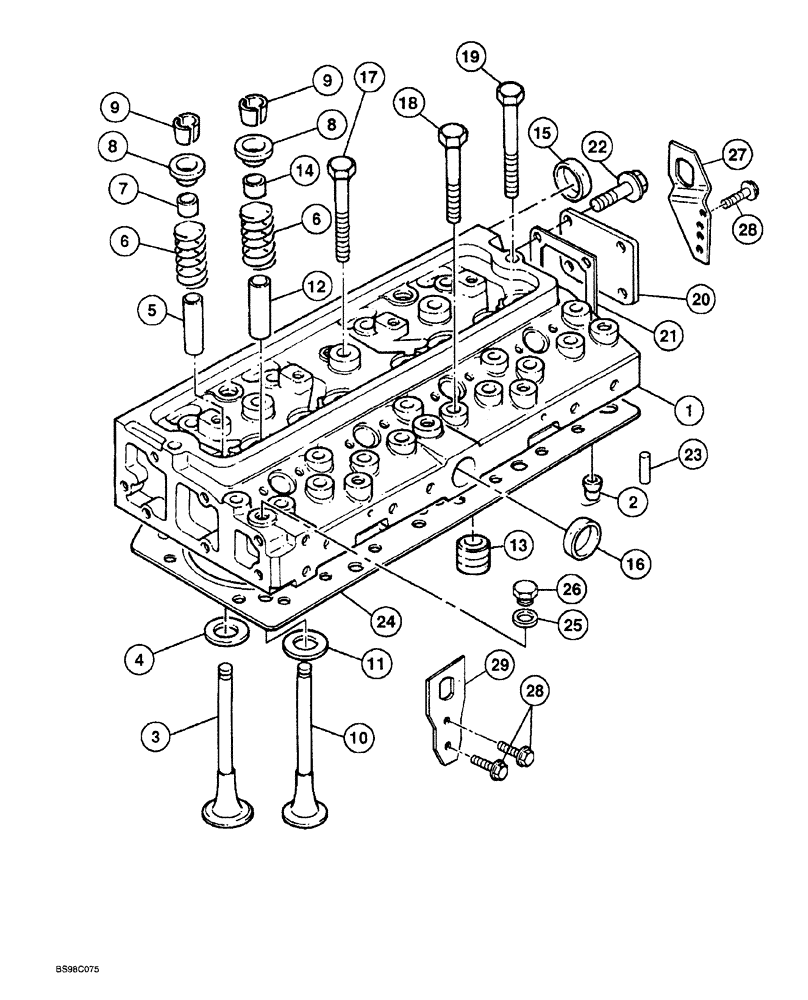

Запчасти Case 689G (02-20) - CYLINDER HEAD (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

HEAD cylinder

1шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

2

291955A1

DOWEL

locating, cylinder head

2шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

3

293042A1

VALVE,ENGINE,INLET,S

VALVE INTAKE

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

4

293131A1

INSERT

intake valve

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

5

311758A1

GUIDE

valve, was 293136A1

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

6

293124A1

VALVE SPRING

return

8шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

7

322823A1

SEAL

valve, was 293183A1

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

8

293140A1

COTTERS PLATE

RETAINER spring

8шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

9

293047A1

ROCKER ARM COTTER

KEEPER valve

16шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

10

293043A1

VALVE, ENG EXHAUST,

VALVE EXHAUST

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

11

293130A1

INSERT

exhaust valve

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

12

293133A1

GUIDE

valve

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

13

217811A1

PLUG

port

1шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

14

322824A1

SEAL

valve, was 293182A1

4шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

15

218263A1

PLUG

frost

1шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

16

3108824R1

PLUG

frost

1шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

17

218227A1

BOLT

hex

8шт.

18

218228A1

BOLT

hex

12шт.

19

218226A1

SCREW

hex

2шт.

23

292999A1

DOWEL

2шт.

24

291958A1

CYLINDER HEAD GASKET

head

1шт.

25

F62407

WASHER

seal

1шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

26

F62332

PLUG

port

1шт.

Part of Cylinder Head Assembly, P/N 314652A1

1шт.

27

293506A1

PLATE

BRACKET lift

1шт.

28

217919A1

SCREW,Hex Flg, M10 x 25mm

hex flange

4шт.

29

293514A1

PLATE

BRACKET lift

1шт.
