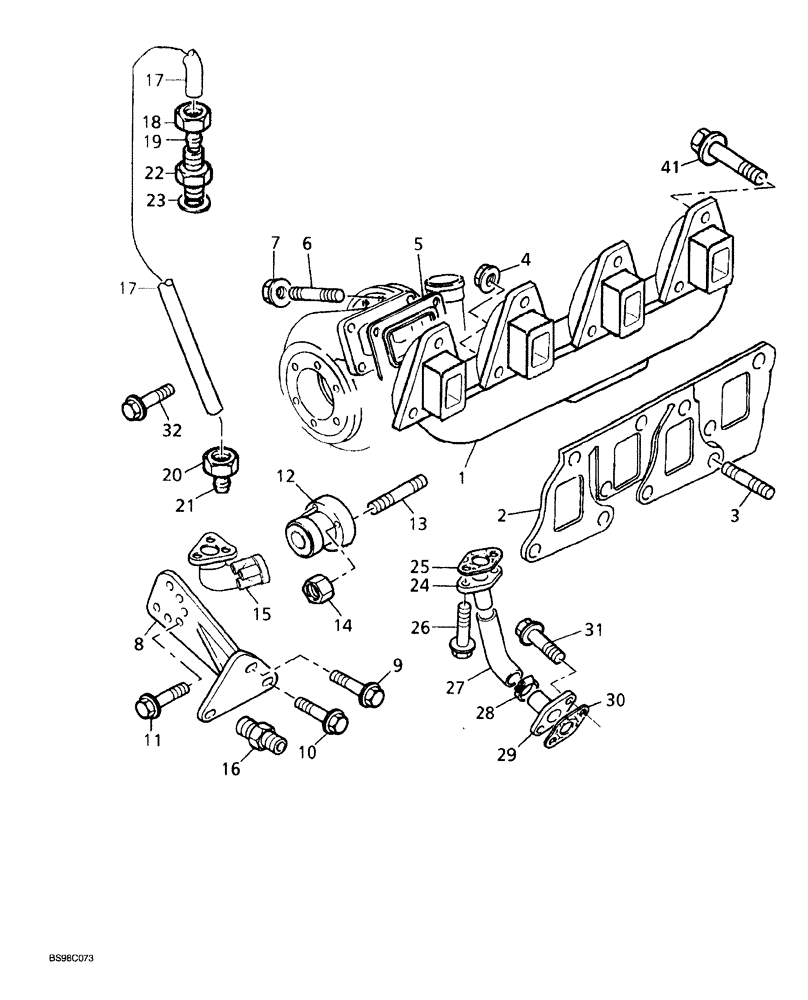

Запчасти Case 689G (02-16) - EXHAUST MANIFOLD (02) - ENGINE

1

314860A1

MANIFOLD

exhaust

1шт.

2

293159A1

GASKET

exhaust manifold

1шт.

3

315934A1

STUD

exhaust manifold

4шт.

4

293139A1

FLANGE NUT

hex flange

4шт.

5

217788A1

GASKET

turbocharger, to exhaust manifold

1шт.

6

315935A1

STUD

, Serial Range: turbocharger-manifold

4шт.

7

218586A1

NUT

hex

4шт.

8

314861A1

BRACKET

support

1шт.

9

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

10

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

11

217919A1

SCREW,Hex Flg, M10 x 25mm

hex flange

3шт.

12

314862A1

ADAPTER

straight

1шт.

13

295962A1

STUD

adapter mounting

3шт.

14

285504A1

NUT

hex

3шт.

15

314864A1

ELBOW

90°

1шт.

16

297786A1

FITTING

straight

1шт.

17

293766A1

PIPE

ASSEMBLY oil, Includes: Ref. 18 - 21

1шт.

18

293137A1

NUT

tube, compression

1шт.

19

222-653

SLEEVE,5/16" Tube, Comp

SLEEVE tapered, 3/8 inch tube OD

1шт.

20

293137A1

NUT

tube, compression

1шт.

21

222-653

SLEEVE,5/16" Tube, Comp

SLEEVE tapered, 3/8 inch tube OD

1шт.

22

297787A1

FITTING

straight

1шт.

23

297788A1

WASHER

flat

1шт.

24

297785A1

PIPE

oil

1шт.

25

293152A1

GASKET

oil pipe

1шт.

26

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

27

295829A1

HOSE

oil

1шт.

28

218655A1

CLAMP

hose

2шт.

29

291999A1

TUBE

oil

1шт.

30

218553A1

GASKET

oil pipe

1шт.

31

218021A1

SCREW

hex flange

2шт.

32

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

41

315936A1

BOLT

hex flange

8шт.
