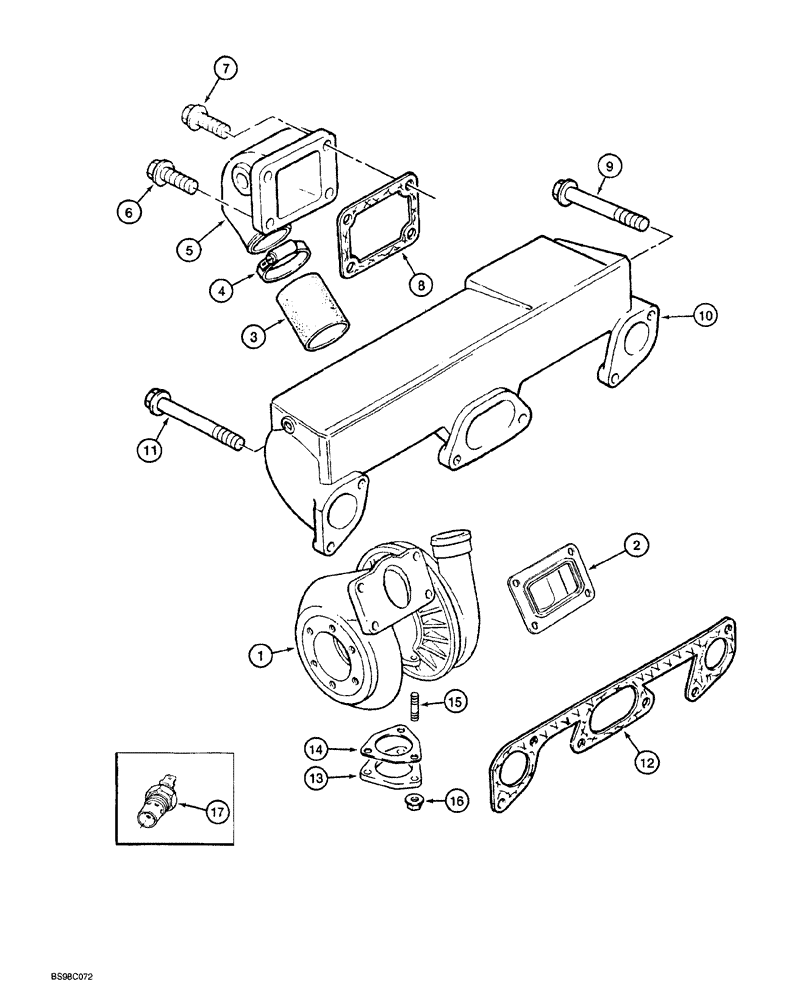

Запчасти Case 689G (02-14) - TURBOCHARGER AND MANIFOLD (02) - ENGINE

1

314767A1

TURBOCHARGER

ASSEMBLY engine

1шт.

2

217788A1

GASKET

turbocharger

1шт.

3

314859A1

HOSE ASSY.

at intake manifold

1шт.

4

218770A1

CLAMP

hose

2шт.

5

314857A1

ELBOW

special, air intake

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

7

218571A1

SCREW

hex flange

2шт.

8

314858A1

SEAL

elbow to intake manifold

1шт.

9

308765A1

SCREW

hex flange

4шт.

10

314856A1

MANIFOLD

air intake

1шт.

11

218571A1

SCREW

hex flange

4шт.

12

REF

INSTRUCTION

GASKET intake manifold

1шт.

13

218591A1

SHIN

FLANGE turbocharger

1шт.

14

298725A1

GASKET

flange

1шт.

15

217984A1

STUD

flange mounting

3шт.

16

218586A1

NUT

hex

3шт.

17

3118299R1

GLOW PLUG

HEATER intake, cold start

1шт.
