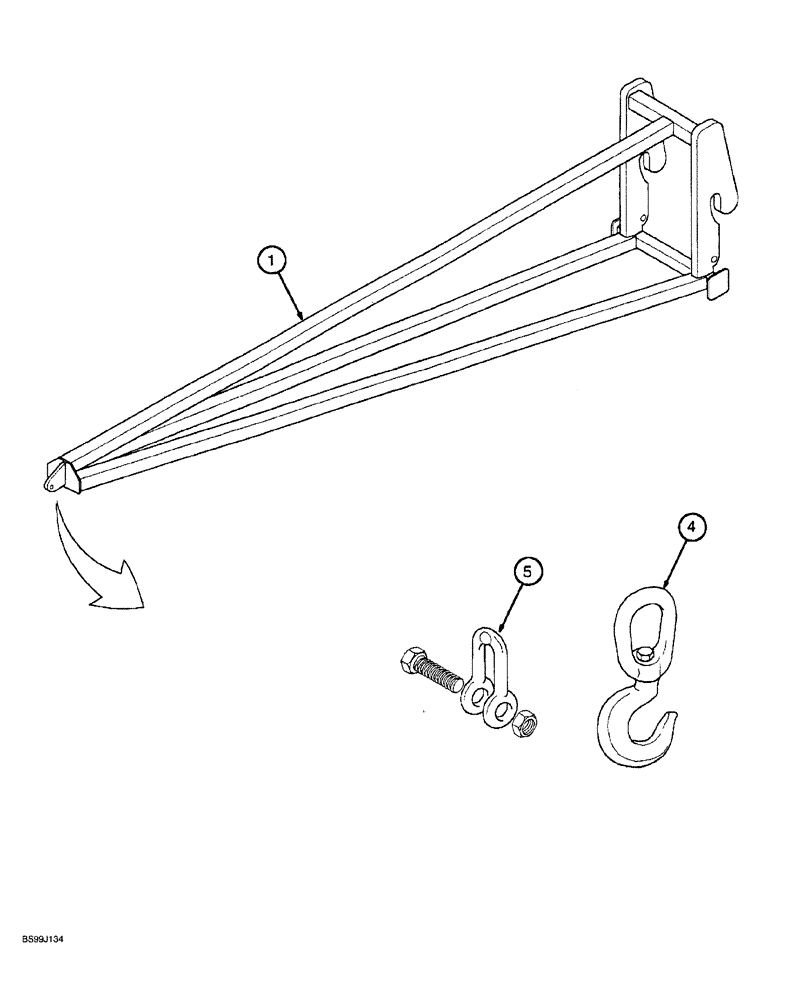

Запчасти Case 689G (09-46) - 3-1/2 METER (12 FOOT) TRUSS BOOM (09) - CHASSIS

1

320237A1

BOOM

TRUSS, 3-1/2 meter (12 foot) long, Includes: Ref. 1A and 1B

1шт.

1a

377341A1

DECAL

nameplate, truss, not shown

1шт.

1b

301-1424

DRIVE SCREW,Drive, #4 x 1/4"

drive, round head, No. 4 x 1/4 inch, not shown

2шт.

4

345590A1

HOOK

swivel

1шт.

5

345586A1

SHACKLE

KIT

1шт.
