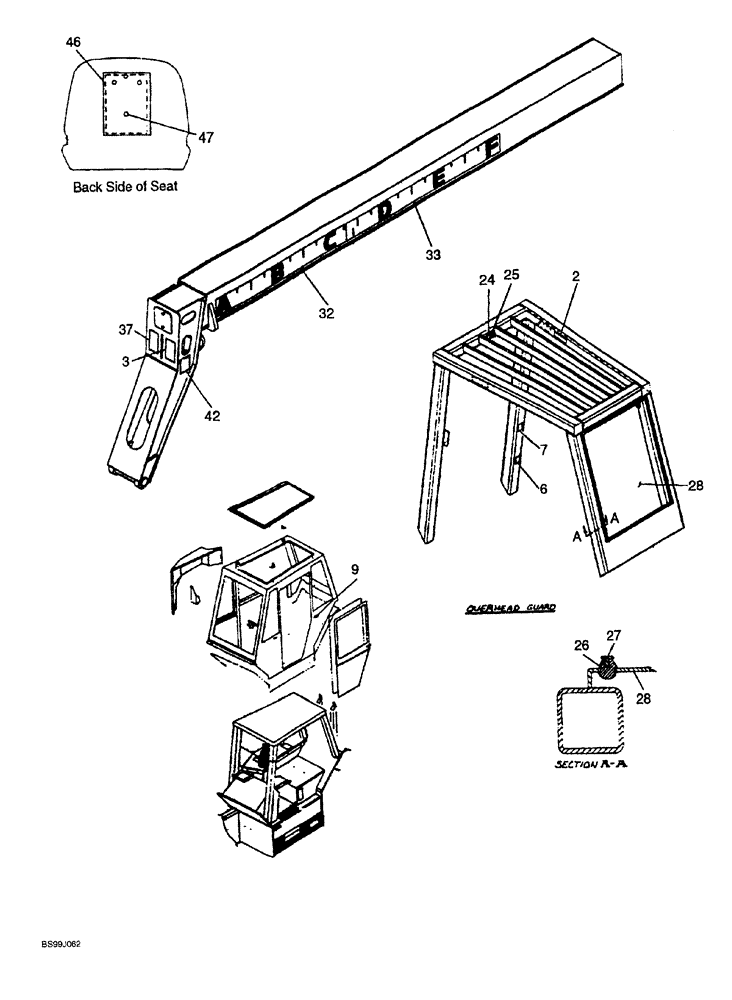

Запчасти Case 689G (09-44) - DECALS, MISCELLANEOUS (09) - CHASSIS

2

309594A1

DECAL

roll over

2шт.

3

309579A1

DECAL

falling object

1шт.

6

361844A1

DECAL

parking brake off

1шт.

7

361843A1

DECAL

brake on

1шт.

9

309601A1

DECAL

no-riders

2шт.

24

310388A1

BOLT

hex

1шт.

25

310447A1

SCREW

machine

1шт.

26

310395A1

SEAL, GLASS

rear glass

1шт.

27

310271A1

LOCK

glass seal

7шт.

28

310451A1

GLASS

rear

1шт.

32

314022A1

DECAL

boom length

1шт.

33

314021A1

DECAL

boom length

1шт.

37

309580A1

DECAL

falling off

1шт.

42

309280A1

DECAL

carriage shift

2шт.

46

259837A1

CASE

BOX manual, Includes: Ref. 46A and 46B

1шт.

46

905-6010

BOLT,Hex Flg, M6 x 10mm

hex serrated flange, 6 -1.0 x 10 mm not shown, if used

4шт.

46b

825-5146

SERRATED NUT,M6, Flg Ser

Not shown, if used

4шт.

47

310247A1

RIVET

box mounting, if used

4шт.

52

361842A1

DECAL

cold start, not shown

1шт.

53

361841A1

DECAL

cold start aid, not shown

1шт.

54

361840A1

DECAL

accumulator pressure, not shown

1шт.

55

361845A1

NUT

hex, 3/8 inch NC, not shown

1шт.

56

360292A1

DECAL

moving machine, not shown

1шт.
