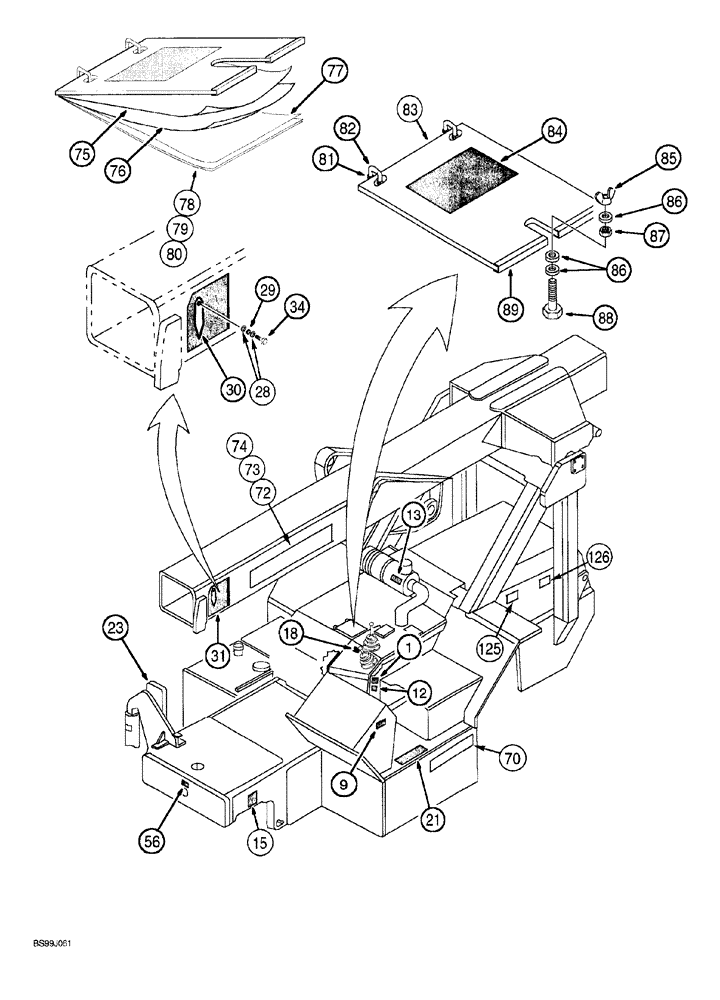

Запчасти Case 689G (09-42) - DECALS (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
309600A1
DECAL
OSHA
1шт.
9
309601A1
DECAL
no riders
1шт.
12
317368A1
DECAL
operation maintainance and safety warning
2шт.
13
309599A1
DECAL
unmetered ether
1шт.
15
360933A1
DECAL
crush area
4шт.
18
309341A1
DECAL
fork control
1шт.
21
310423A1
TREAD
DECAL non slip
4шт.
23
310082A1
MIRROR
rear view
1шт.
28
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
Flat, (13/32 x 13/16 x 1/16")
2шт.
29
309243A1
BUSHING
BEARING pointer
1шт.
30
317152A1
PLATE
pointer, boom extension
1шт.
31
309244A1
DECAL
distance gauge
1шт.
34
121-436
STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 3/4"
shoulder, hex socket, 3/8 NC x 5/8 inch, 3/4 inch shoulder
1шт.
53
309536A1
DECAL
open cover
1шт.
56
310049A1
DECAL
grease
1шт.
70
310808A1
DECAL
689G
2шт.
72
325456A1
DECAL
stripe, center, left-hand boom
1шт.
73
310811A1
DECAL
CASE, left-hand boom
1шт.
74
325455A1
DECAL
stripe, left-hand boom
1шт.
75
346963A1
DECAL
load chart, QA carriage
1шт.
76
360297A1
DECAL
load chart 12 foot boom
1шт.
77
360296A1
DECAL
load chart, 15 foot boom
1шт.
78
360295A1
DECAL
load chart, 1.3 cubic yard bucket
1шт.
79
360294A1
DECAL
load chart, 60 inch fork position
1шт.
80
360293A1
DECAL
tire inflation chart
1шт.
81
309941A1
LOCK NUT
hex, 1/4 inch NC
4шт.
82
309272A1
U-BOLT
BOLT "U" special
2шт.
83
309535A1
COVER
PLATE
1шт.
84
309536A1
DECAL
open cover
1шт.
85
129-409
WING NUT,1/4"-20
1шт.
86
495-21031
WASHER,1/4"
flat, 5/16 x 3/4 x 1/16 inch
3шт.
87
425-144
JAM NUT,Jam, 1/4"-20, G5
1шт.
89
339625A1
ORNAMENTAL STRIP
TRIM quick edge
2шт.
120
309926A1
ARMREST
operator
1шт.
121
309933A1
PAD
control
1шт.
122
309928A1
SCREW
lock
1шт.
123
309935A1
BOLT
hex, self-locking, 1/4 NC x 3/4 inch
1шт.
124
231-1444
NUT,1/4"-20, GB
2шт.
125
321-7040
DANGER DECAL
Starting in gear can cause death
1шт.
126
321-6872
DECAL
Warning, wrong jumper cable connections to starter terminals
1шт.
88
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
1шт.
Выбрано товаров: 41
