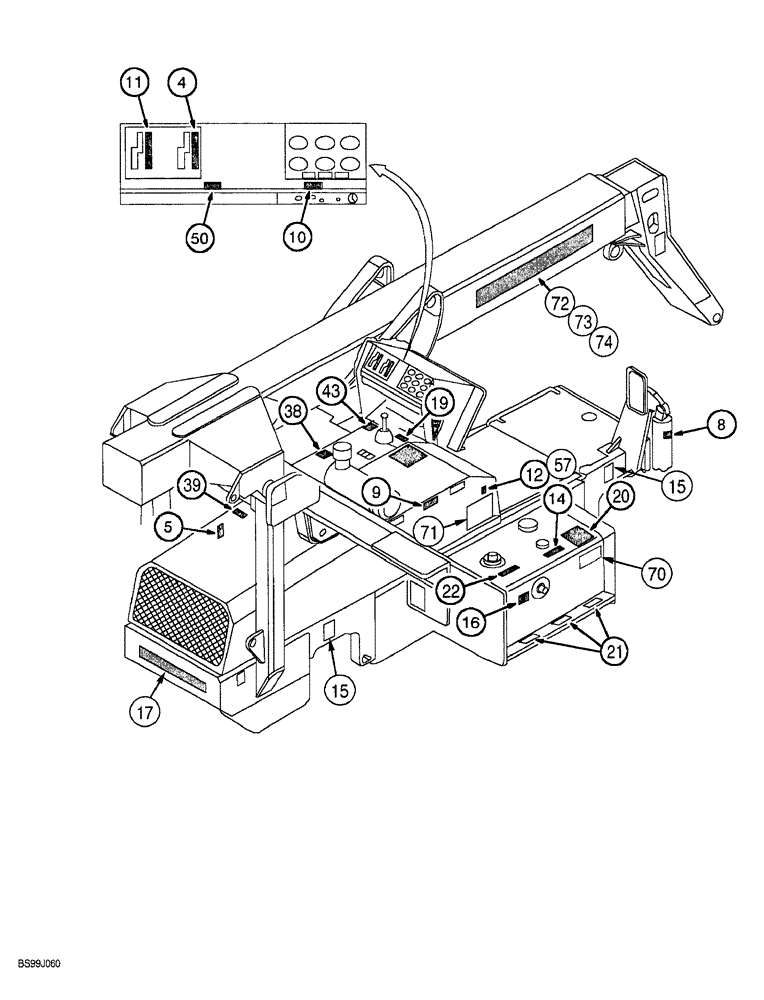

Запчасти Case 689G (09-40) - DECALS (09) - CHASSIS

1

309600A1

DECAL

OSHA, not shown

1шт.

4

310358A1

DECAL

transmission shift

1шт.

5

309588A1

DECAL

rotating

2шт.

8

310374A1

DECAL

frame tipping

1шт.

9

309601A1

DECAL

no-riders

2шт.

10

309268A1

DECAL

steering selector

1шт.

11

310357A1

DECAL

forward and reverse

1шт.

12

317368A1

DECAL

operation, maintainance and safety warning

1шт.

14

310015A1

DECAL

fuel

1шт.

15

360933A1

DECAL

crush area

4шт.

16

310005A1

DECAL

fuel level

1шт.

17

310809A1

DECAL

Case and stripe

1шт.

19

309281A1

DECAL

hydraulic controls

1шт.

20

310422A1

TREAD

tread, non-slip

1шт.

21

310423A1

TREAD

tread, non-slip

4шт.

22

310047A1

DECAL

hydraulic oil

1шт.

38

309578A1

DECAL

electric hazard

1шт.

39

309596A1

DECAL

warning, pressure

1шт.

43

310360A1

DECAL

frame level

1шт.

50

310159A1

DECAL

windshield washer

1шт.

57

360305A1

DECAL

rollover, tire

1шт.

70

310808A1

DECAL

689G

2шт.

71

360298A1

DECAL

lube chart

1шт.

72

325453A1

DECAL

stripe, right-hand boom

1шт.

73

310810A1

DECAL

CASE, right-hand boom

1шт.

74

325454A1

DECAL

stripe, center, right-hand boom

1шт.
