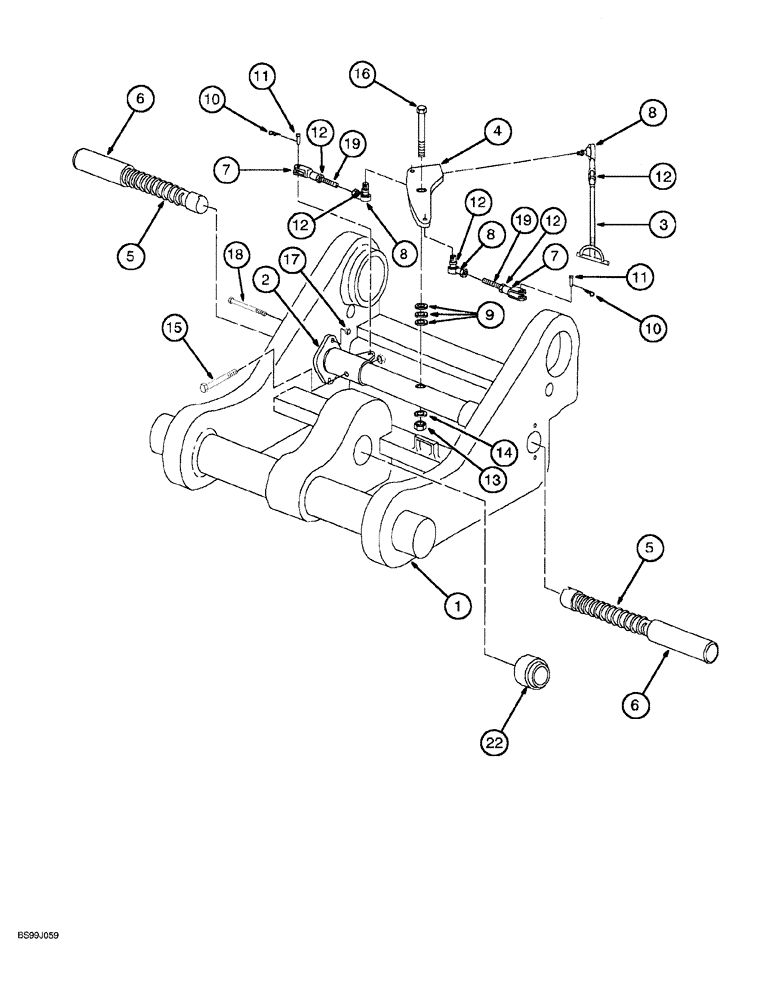

Запчасти Case 689G (09-32) - QUICK ATTACH FRAME (09) - CHASSIS

1

309874A1

BRACKET

FRAME quick attach

1шт.

2

309266A1

TUBE

pin positioning

1шт.

3

309265A1

HANDLE

quick attach frame

1шт.

4

309262A1

ARM ASSY.

BELLCRANK quick attach frame

1шт.

5

309237A1

SPRING

return

2шт.

6

309264A1

PIN

quick attach

2шт.

7

309943A1

YOKE

UNIVERSAL JOINT YOKE CLEVIS adjustable

2шт.

8

310375A1

BALL JOINT

3шт.

9

310091A1

WASHER

flat, hardened

3шт.

10

432-48

COTTER PIN,1/16" x 1/2"

2шт.

11

310021A1

CLEVIS PIN

2шт.

12

425-154

JAM NUT,Jam, 1/4"-28, G5

5шт.

13

232-1446

NUT,3/8"-16, GC

3шт.

14

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

15

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

2шт.

16

121-256

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 2"

1/2 inch shoulder

1шт.

17

492-21031

LOCK WASHER,5/16"

5/16"

4шт.

18

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

19

317800A1

ROD

adjuster, threaded

2шт.

22

314029A1

BUSHING

frame

1шт.
