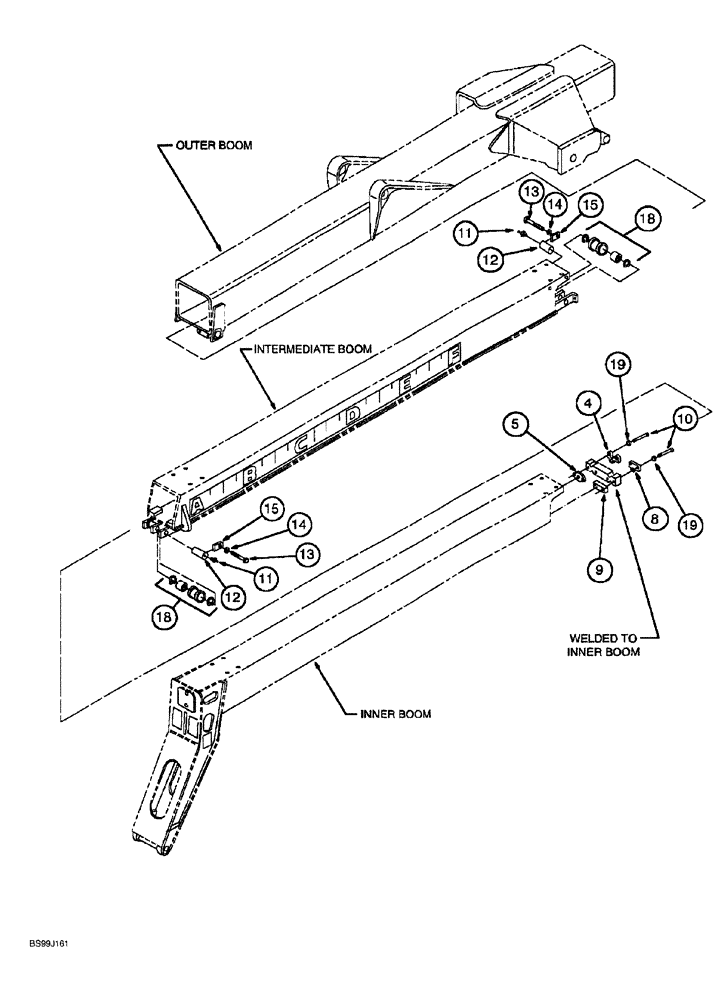

Запчасти Case 689G (09-24) - BOOM CHAIN ASSEMBLY, PULLEYS, PINS AND HARDWARE (09) - CHASSIS

4

318225A1

PLATE

chain

1шт.

5

318226A1

PLATE

spacer

1шт.

8

318227A1

PLATE

chain anchor

1шт.

9

318228A1

PLATE

backing

1шт.

10

61-35044

HEX SOC SCREW,1/2" - 13 x 2-3/4"

hex socket, 1/2 NC x 2-3/4 inch

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

12

314086A1

PIN

sheave mounting

3шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3шт.

14

492-11038

LOCK WASHER,3/8"

3шт.

15

314037A1

BAR

RETAINER pin

3шт.

18

314044A1

SHEAVE

PULLEY ASSEMBLY chain, Includes: Ref. 18A, 18B and 18C

3шт.

18a

318213A1

PULLEY

chain, not shown

1шт.

18b

314092A1

RING, SNAP

RING SNAP retaining, not shown

2шт.

18c

314062A1

BEARING WASHER

roller, not shown

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

4шт.
