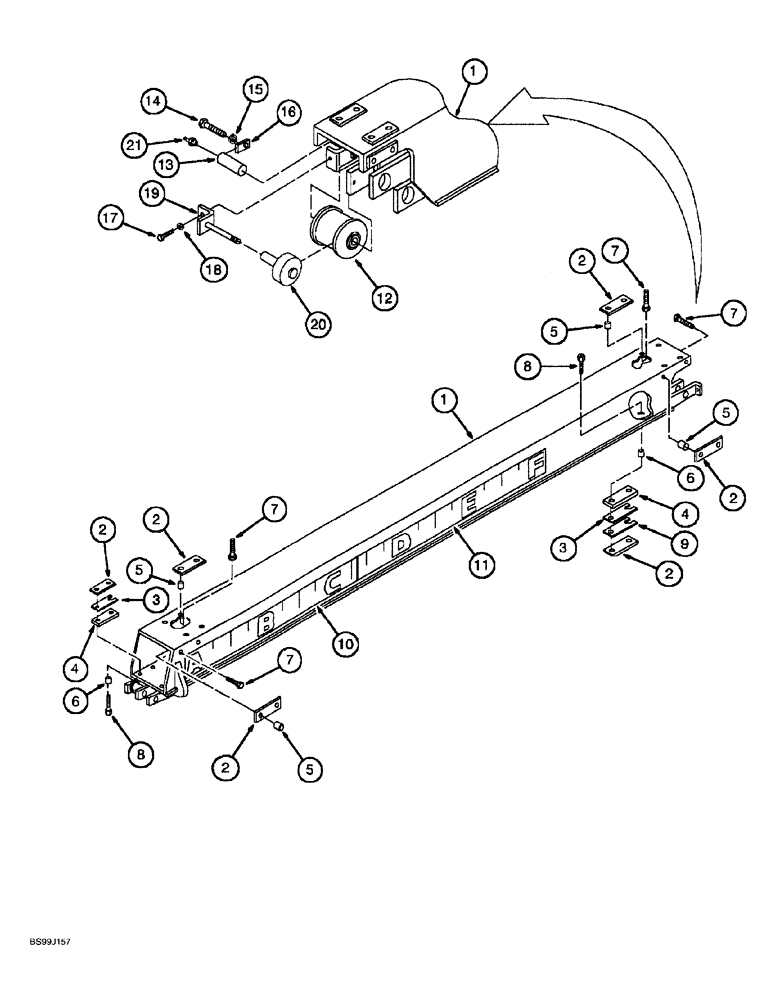

Запчасти Case 689G (09-18) - INTERMEDIATE BOOM ASSEMBLY (09) - CHASSIS

1

315639A1

BOOM

intermediate

1шт.

2

314049A1

SHOE

wear

12шт.

3

314059A1

SHIM

1/16 inch

10шт.

4

314060A1

SHIM

1/2 inch

4шт.

5

314063A1

COLLAR

compression, 0.920 inch long

16шт.

6

314064A1

COLLAR

compression, 1.170 inch long

8шт.

7

428-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

hex, 5/8 NF x 1-1/2 inch, grade 8

16шт.

8

462-36224

HEX SOC SCREW,5/8"-18 x 1 1/2"

hex socket, 5/8 NF x 1-1/2 inch

8шт.

9

314061A1

SHIM

1/32 inch

2шт.

10

314022A1

DECAL

boom length

1шт.

11

314021A1

DECAL

boom length

1шт.

12

313404A1

SHEAVE

PULLEY ASSEMBLY hose

1шт.

13

315641A1

PIN

hose pulley

1шт.

14

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

318202A1

BAR

keeper

1шт.

17

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

1шт.

18

492-11025

LOCK WASHER,1/4"

1шт.

19

339709A1

SHAFT

BRACKET mounting, hose keeper

1шт.

20

339710A1

LOCKING DEVICE

KEEPER hose

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
