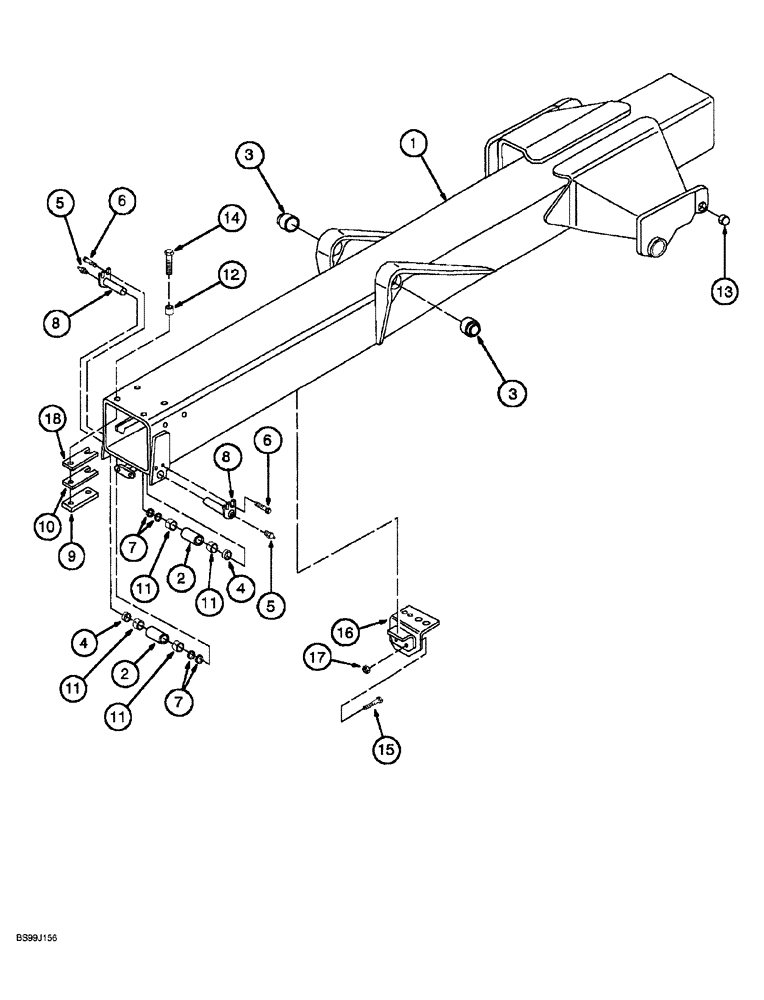

Запчасти Case 689G (09-16) - OUTER BOOM ASSEMBLY (09) - CHASSIS

1

364609A1

BOOM

outer

1шт.

2

314045A1

ROLLER

hose

2шт.

3

314029A1

BUSHING

lift cylinder mounting

2шт.

4

314050A1

SPACER

hose roller

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

6

310448A1

BOLT

hex flange, 3/8 NC x 3/4 inch

4шт.

7

495-21150

WASHER,1 3/8"

flat, 1-1/2 x 3-1/4 x 3/16 inch

4шт.

8

314046A1

PIN

locking

2шт.

9

314049A1

SHOE

wear

2шт.

10

314059A1

SHIM

1/16 inch

14шт.

11

314072A1

BUSHING

roller

4шт.

12

314063A1

COLLAR

compression, 0.920 inch long

8шт.

13

316196A1

BUSHING

compensation cylinder mounting

2шт.

14

428-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

hex, 5/8 NF x 1-1/2 inch, grade 8

4шт.

15

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

16

339708A1

ADAPTER

BRACKET mounting, boom

1шт.

17

425-166

NUT,3/8"-16, G5, Hvy

heavy hex, 3/8 inch NC

2шт.

18

314061A1

SHIM

1/32 inch

4шт.
