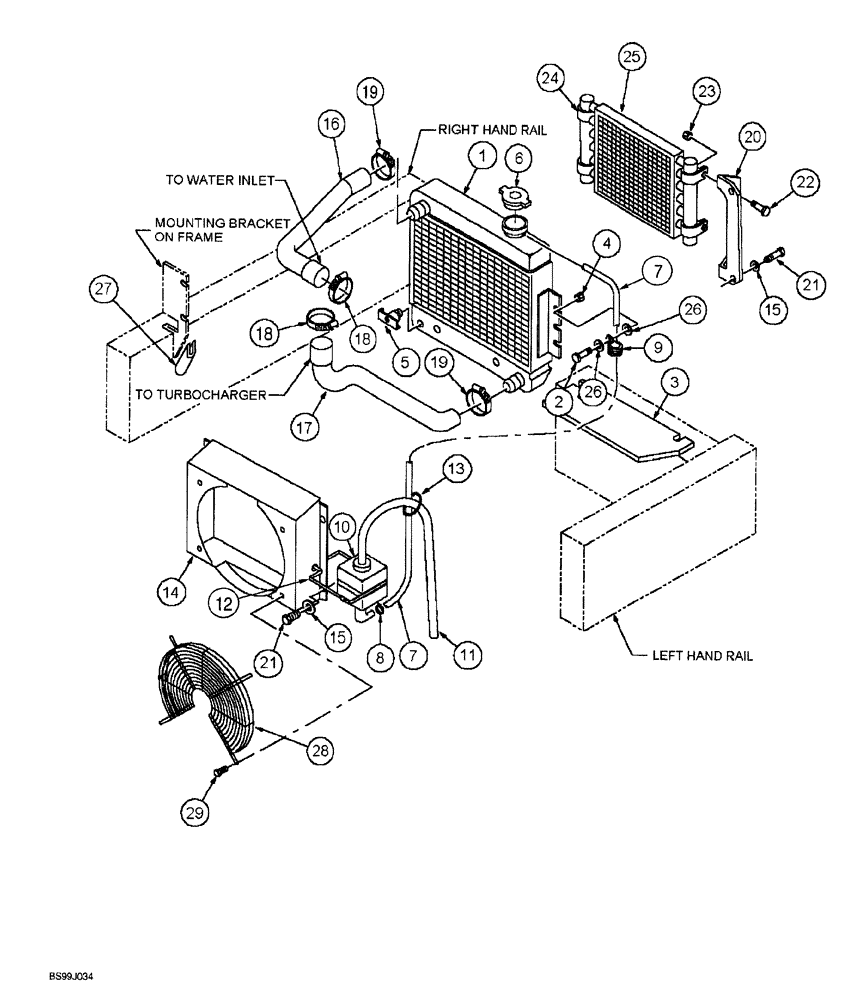

Запчасти Case 689G (02-10) - RADIATOR AND HOSES (02) - ENGINE

1

310078A1

RADIATOR

engine cooling

1шт.

2

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

3

310329A1

PLATE

baffle

1шт.

4

232-1446

NUT,3/8"-16, GC

4шт.

5

317486A1

VALVE

drain

1шт.

6

310389A1

CAP

radiator

1шт.

7

310385A1

HOSE

Radiator Overflow

1шт.

8

309137A1

HOSE CLAMP

2шт.

9

310410A1

CLAMP

hose

1шт.

10

310303A1

RESERVOIR

coolant overflow

1шт.

11

310120A1

RESERVOIR

HOSE ASSEMBLY overflow, parts list page 2 -11B

1шт.

12

317789A1

CLAMP

hose

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

14

309879A1

SHROUD

fan

1шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

8шт.

16

310085A1

RADIATOR HOSE

Radiator to Engine, Upper

1шт.

17

310086A1

RADIATOR HOSE

Radiator to Engine, Lower

1шт.

18

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

adj, 21/16-3 inch dia

2шт.

19

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

Adjustable

2шт.

20

310256A1

BRACKET

cooler mounting

2шт.

21

310274A1

BOLT

hex

8шт.

22

309995A1

BOLT

hex, self locking, 5/16 NC x 3/4 inch

4шт.

23

309986A1

LOCK NUT

hex, 5/16 inch NC

6шт.

24

310411A1

CLAMP

hose

4шт.

25

310460A1

COOLER, OIL

1шт.

26

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch)

8шт.

27

310278A1

MOLDING

TRIM edge

1шт.

28

339184A1

GUARD

fan

1шт.

29

309935A1

BOLT

hex, self locking, 1/4 NC x 3/4 inch

4шт.
