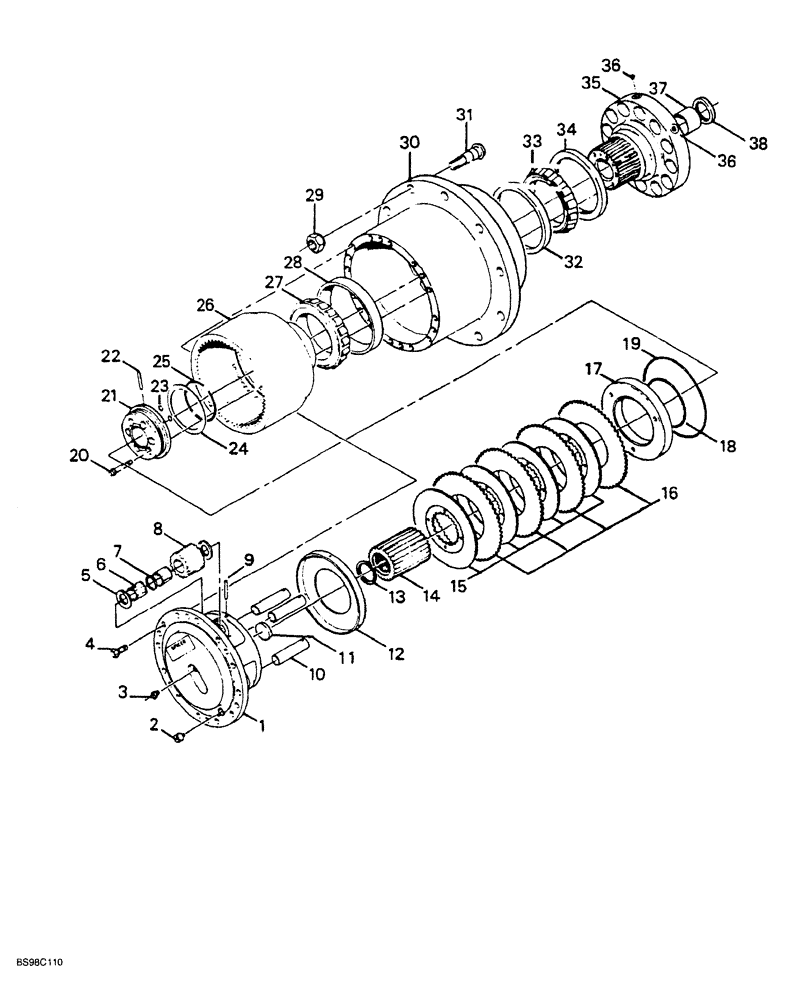

Запчасти Case 689G (06-22) - FRONT AND REAR AXLE, PLANETARY AND HUB (09) - CHASSIS

309881A1

CENTER AXLE

ASSEMBLY drive, parts list Figures 6-16 thru 6-26, Includes: Ref. 1 - 40 and gear assy.

2шт.

316859A1

GEAR-SET

ASSEMBLY planetary, Includes: Ref. 1 - 12

2шт.

1

316860A1

FLANGE

planetary drive

1шт.

2

316842A1

PLUG

drain, magnetic

1шт.

3

313761A1

VENT

breather

1шт.

4

316861A1

BOLT

hex, lock

1шт.

5

313763A1

WASHER

flat, keyed

1шт.

6

313769A1

BEARING, NEEDLE

roller

6шт.

7

313767A1

WASHER

planetary gear

1шт.

8

313714A1

GEAR

planetary

1шт.

9

316862A1

PIN, ROLL

1шт.

10

313762A1

SHAFT

planetary

1шт.

11

316863A1

WASHER

drive flange

1шт.

12

313711A1

PLATE

disc backing

1шт.

13

316864A1

RING

retaining

2шт.

14

316865A1

GEAR

planetary

2шт.

15

316866A1

DISC

friction

8шт.

16

313684A1

PLATE

disc separation

8шт.

17

313753A1

PISTON

planetary

2шт.

18

313713A1

O-RING

piston, inner

2шт.

19

313705A1

O-RING

piston, outer

2шт.

20

313716A1

12 PT SCREW

ferry head

12шт.

21

316867A1

RETAINER

bearing retainer

2шт.

22

313760A1

BRAKE LINE

PIN roll

2шт.

23

313695A1

O-RING

bearing retainer

4шт.

24

313718A1

SHIM

adjusting, 0.010 inch thick

1шт.

24

313721A1

SHIM

adjusting, 0.011 inch thick

1шт.

24

313722A1

SHIM

adjusting, 0.012 inch thick

1шт.

24

313723A1

SHIM

adjusting, 0.013 inch thick

1шт.

24

313724A1

SHIM

adjusting, 0.014 inch thick

1шт.

24

313717A1

SHIM

adjusting, 0.015 inch thick

1шт.

24

313719A1

SHIM

adjusting, 0.020 inch thick

1шт.

24

313720A1

SHIM

adjusting, 0.030 inch thick

1шт.

25

313712A1

O-RING

planetary gear

2шт.

26

316868A1

GEAR

planetary

2шт.

27

316869A1

ROLLER BEARING

tapered roller bearing

2шт.

28

313754A1

BEARING, CUP

tapered roller bearing

2шт.

29

316870A1

WHEEL NUT

hex

20шт.

30

316871A1

HUB

planetary

2шт.

31

316872A1

BOLT

wheel mounting

20шт.

32

313709A1

BEARING, CUP

tapered roller

2шт.

33

313704A1

ROLLER BEARING

tapered roller

2шт.

34

373573A1

OIL SEAL

2шт.

35

316873A1

SPINDLE

wheel

2шт.

36

313715A1

INSERT

SEAT

4шт.

37

313768A1

BUSHING

spindle

2шт.

38

313757A1

OIL SEAL

2шт.

39

313706A1

BLEEDER

FITTING, at spindle, not shown

2шт.

40

313707A1

FITTING

brake line hose at spindle, not shown

12шт.
