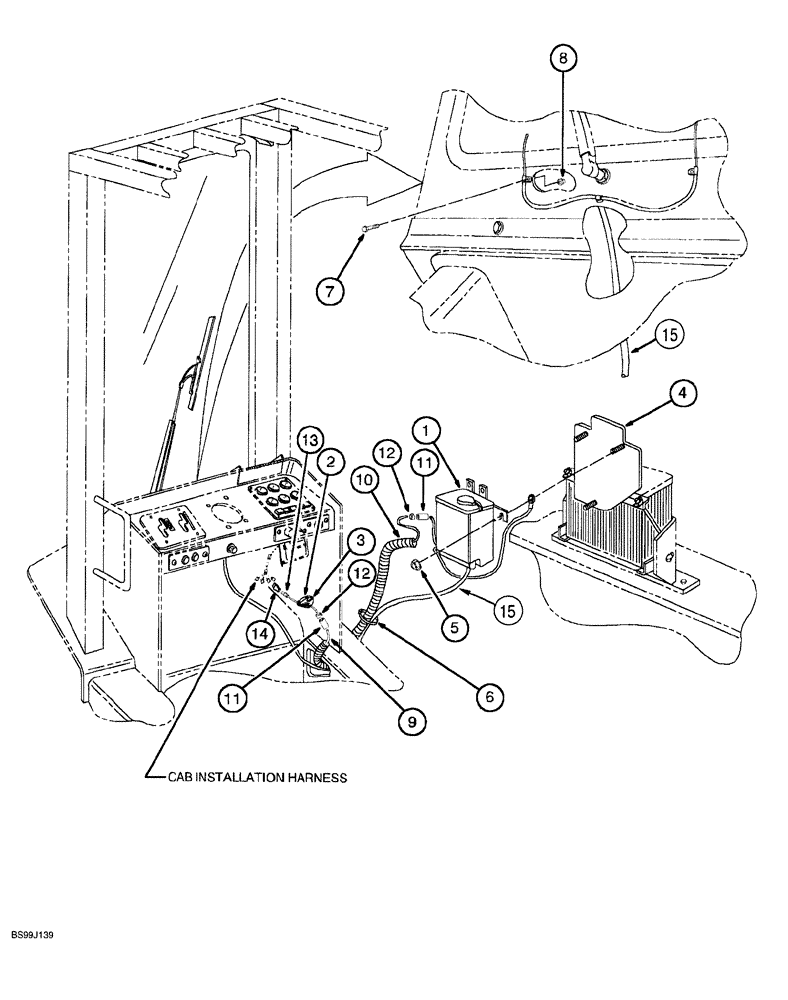

Запчасти Case 689G (04-44) - CAB WINDSHIELD WASHER (09) - CHASSIS

1

310158A1

RESERVOIR

fluid, windshield washer, Includes: Ref. 1B

1шт.

1b

309313A1

PUMP

fluid, windshield washer, not shown

1шт.

2

310304A1

AXLE PIN

HOLDER fuse

1шт.

3

310402A1

FUSE

5 amp

1шт.

4

310157A1

PLATE

washer mounting

1шт.

5

309941A1

LOCK NUT

hex, self locking, 1/4 inch NC

3шт.

6

314799A1

FASTENER

STRAP tie

10шт.

7

317802A1

SCREW

machine, 12 point, No. 10 NC x 3/4 inch

2шт.

8

309914A1

LOCK NUT

hex

2шт.

9

318373A1

ELECTRICAL WIRE

WIRE electrical

1шт.

10

318374A1

GUARD

wire

1шт.

11

310301A1

CONNECTOR, ELEC

CONNECTOR electrical

2шт.

12

REF

INSTRUCTION

CLIP wire

2шт.

13

309907A1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

14

309908A1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

15

310155A1

HOSE

washer fluid

1шт.
