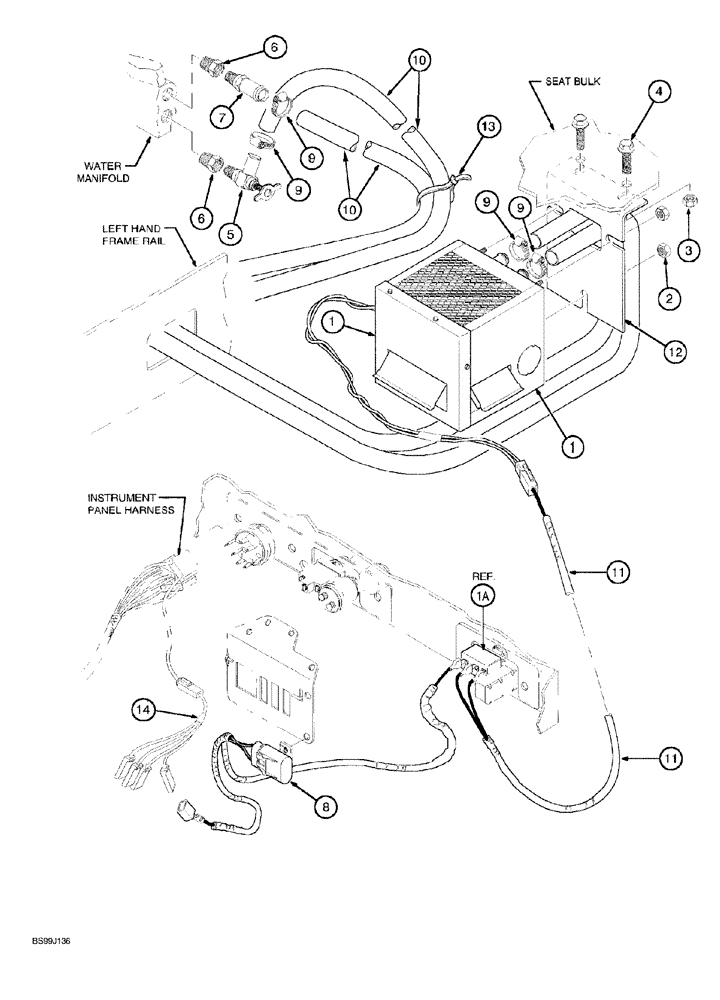

Запчасти Case 689G (04-36) - CAB HEATER (09) - CHASSIS

1

345540A1

HEATER ASSY.

cab, Includes: Ref. 1A

1шт.

1a

378534A1

SWITCH

heater

1шт.

2

309986A1

LOCK NUT

hex, 5/1 6 inch NC

1шт.

3

310000A1

LOCK NUT

hex, self-locking, 3/8 inch NC

3шт.

4

310025A1

BOLT

hex, 3/8 NC x 1 inch

2шт.

5

309911A1

VALVE

heater, at manifold

2шт.

6

309946A1

REDUCER

BUSHING

1шт.

7

310400A1

FITTING

hose, straight

2шт.

8

309866A1

HARNESS

wire

1шт.

9

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

4шт.

10

310297A1

HOSE

Heater

2шт.

11

345541A1

HARNESS

wiring, Serial Range: switch-heater

1шт.

12

310295A1

BRACKET

heater

1шт.

13

356720A1

STRAP

tie

10шт.

14

339629A1

HARNESS

wiring

1шт.

15

309903A1

FUSE

10 amp, not shown

1шт.
