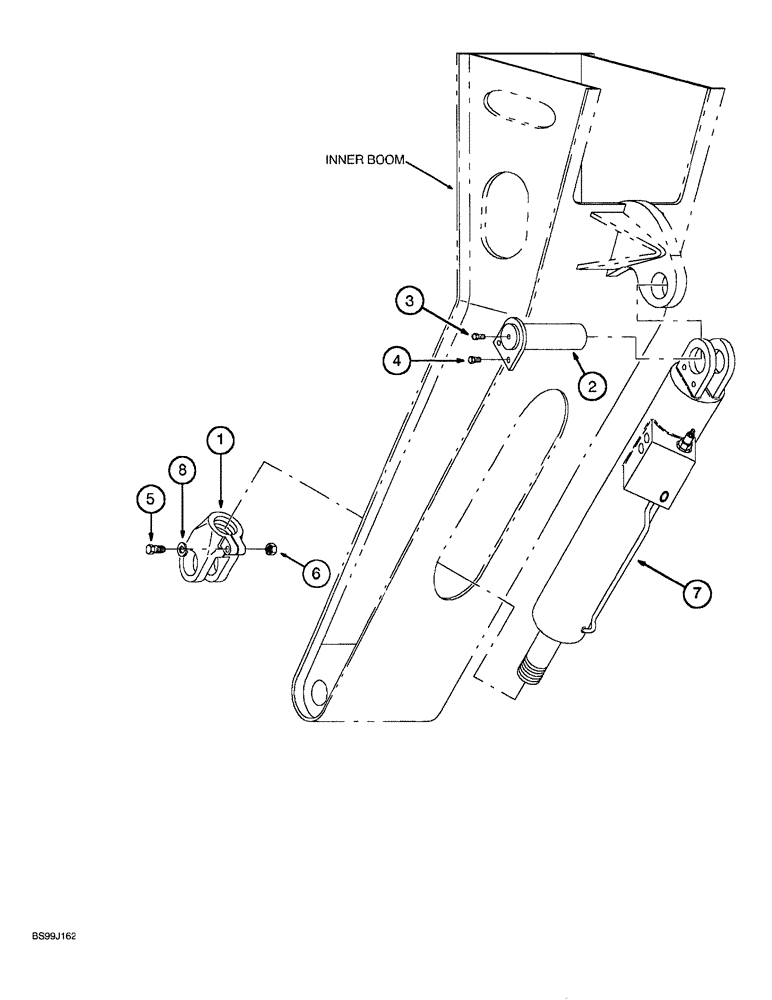

Запчасти Case 689G (09-28) - CARRIAGE TILT CYLINDER INSTALLATION (08) - HYDRAULICS

1

318205A1

YOKE

UNIVERSAL JOINT YOKE rod, cylinder

1шт.

2

314043A1

PIN

cylinder mounting

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

310448A1

BOLT

hex flange, 3/8 NC x 3/4 inch

4шт.

5

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

6

309905A1

NUT

hex, 1/2 inch NC

1шт.

7

314097A1

CYLINDER

ASSEMBLY carriage tilt, Includes: Ref. 7A, 7B and 7C

1шт.

7a

348274A1

VALVE

relief

1шт.

7b

378441A1

LOCK NUT

special

1шт.

7c

313401A1

SEAL KIT

seal

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

1шт.
