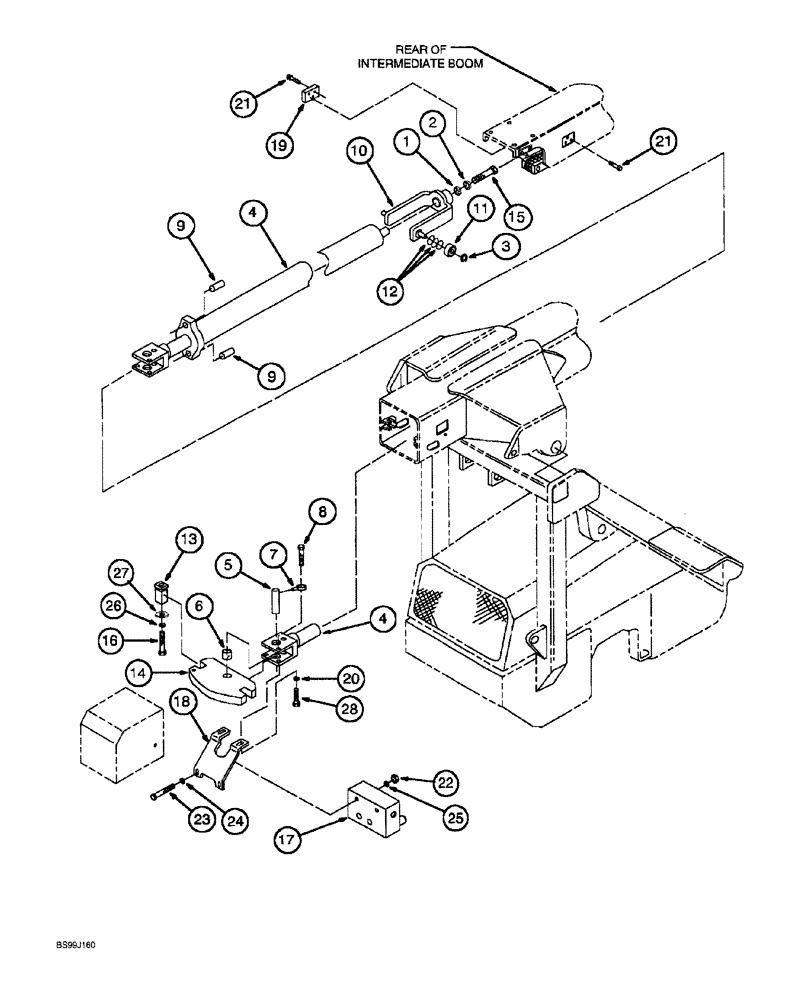

Запчасти Case 689G (09-22) - TELESCOPIC CROWD CYLINDER ASSEMBLY (08) - HYDRAULICS

1

495-21069

WASHER,5/8"

flat, 11 /16 x 1-3/4 x 9/64 inch

1шт.

2

492-11062

BEARING WASHER,5/8"

1шт.

3

100-11100

SNAP RING,#100, Ext

2шт.

4

313411A1

CYLINDER

ASSEMBLY telescopic crowd, Includes: Ref. 4A and 4B

1шт.

4a

339714A1

LOCK NUT

special

1шт.

4b

314012A1

SEAL KIT

seal

1шт.

5

318216A1

PIN

cylinder mounting, rod end

1шт.

6

314069A1

BUSHING

cylinder mounting plate

1шт.

7

310379A1

BRACKET

RETAINER clevis pin

1шт.

8

310369A1

BOLT

flange

3шт.

9

38-13224

LOCK PIN,1/2" x 1 1/2", Slotted

1/2" x 1 1/2", Slotted

2шт.

10

314052A1

SUPPORT

roller

1шт.

11

314085A1

ROLLER BEARING

BEARING

2шт.

12

314093A1

WASHER

thrust

8шт.

13

314051A1

BLOCK

activation

2шт.

14

318218A1

PLATE

cylinder

1шт.

15

428-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 8

hex, 5/8 NF x 1-1/2 inch, grade 8

1шт.

16

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

17

314077A1

VALVE

ASSEMBLY motor control, Includes: Ref. 17A and 17B

1шт.

17a

314100A1

VALVE

CARTRIDGE

1шт.

17b

339715A1

SEAL KIT

seal, valve repair

1шт.

18

318220A1

PLATE

valve mounting

1шт.

19

318221A1

BLOCK

stop

2шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

21

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

22

318222A1

NUT

hex, 7/16 inch NC

2шт.

23

426-780

BOLT,Hex, 7/16" - 14 x 5", Gr 8

hex, 7/16 NC x 5 inch, grade 8

2шт.

24

495-21050

WASHER,7/16"

(Flat, 1/2 x 1-1/4 x 5/64")

2шт.

25

492-11044

LOCK WASHER,7/16"

2шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

316960A1

WASHER

flat, 3/8 inch

2шт.
