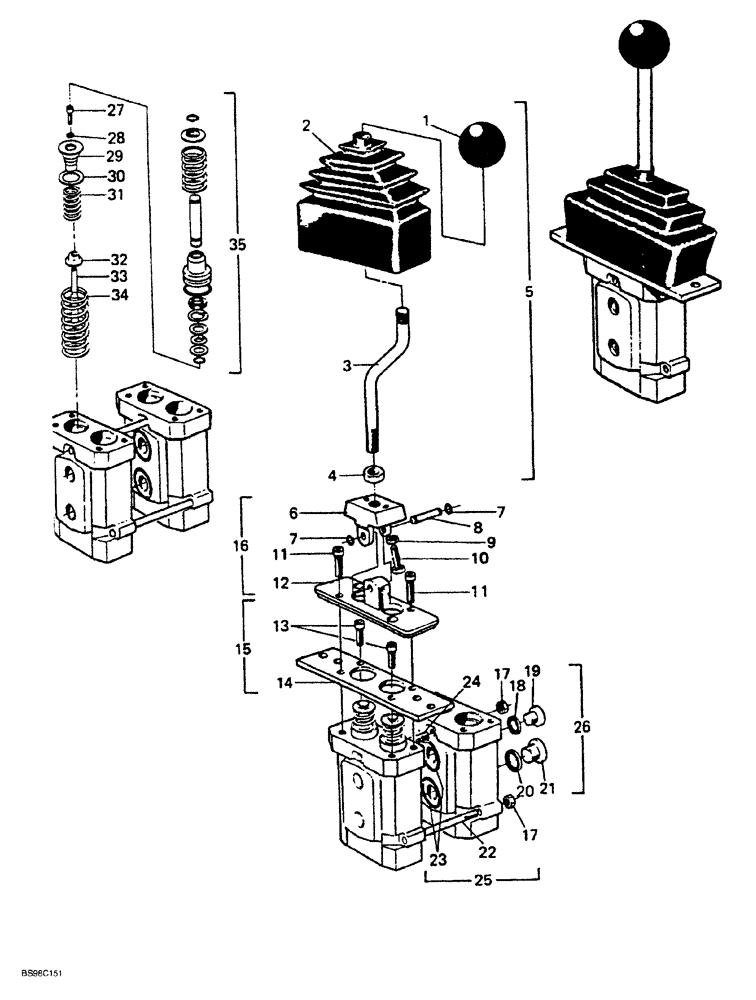

Запчасти Case 689G (08-58) - LINEAR CONTROL VALVE (08) - HYDRAULICS

309416A1

CONTROL

VALVE ASSEMBLY, auxiliary, Includes: Ref. 1 - 35

1шт.

1

309393A1

BALL

KNOB control

1шт.

2

309392A1

BELLOWS

BOOT control rod

1шт.

3

NSS

NOT SOLD SEPARAT

ROD control

1шт.

4

309391A1

NUT

control rod

1шт.

5

309394A1

LEVER ASSY.

control, Includes: Ref. 1 through 4

1шт.

6

NSS

NOT SOLD SEPARAT

CAP valve control

1шт.

7

NSS

NOT SOLD SEPARAT

RING locking

2шт.

8

NSS

NOT SOLD SEPARAT

SHAFT rocker

1шт.

9

NSS

NOT SOLD SEPARAT

NUT adjusting screw

2шт.

10

NSS

NOT SOLD SEPARAT

SCREW adjusting

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW mounting

2шт.

12

NSS

NOT SOLD SEPARAT

PLATE pressure

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW mounting

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE mounting

1шт.

15

309396A1

PLATE

ASSEMBLY mounting, Includes: Ref. 13 and 14

1шт.

16

309395A1

PLATE ASSY.

pressure, Includes: Ref. 6 through 12

1шт.

17

309400A1

NUT

tie rod

6шт.

18

309403A1

O-RING

plug

1шт.

19

309404A1

PLUG

valve

1шт.

20

309405A1

O-RING

plug

1шт.

21

309406A1

PLUG

valve

1шт.

22

NSS

NOT SOLD SEPARAT

ROD tie

2шт.

23

309401A1

O-RING

valve

2шт.

24

NSS

NOT SOLD SEPARAT

ROD tie

1шт.

25

309407A1

KIT

tie rod, Includes: Ref. 17, and 22 through 24

1шт.

26

309408A1

KIT

plug, Includes: Ref. 18 through 21

1шт.

27

309413A1

SCREW

guide, 1

1шт.

28

309412A1

WASHER

screw

1шт.

29

NSS

NOT SOLD SEPARAT

GUIDE spring

1шт.

30

309411A1

SPACER

spring

1шт.

31

309410A1

SPRING

valve

1шт.

32

NSS

NOT SOLD SEPARAT

GUIDE spring

1шт.

33

NSS

NOT SOLD SEPARAT

PIN guide

1шт.

34

309409A1

SPRING

return

1шт.

35

309414A1

KIT

pin

1шт.
