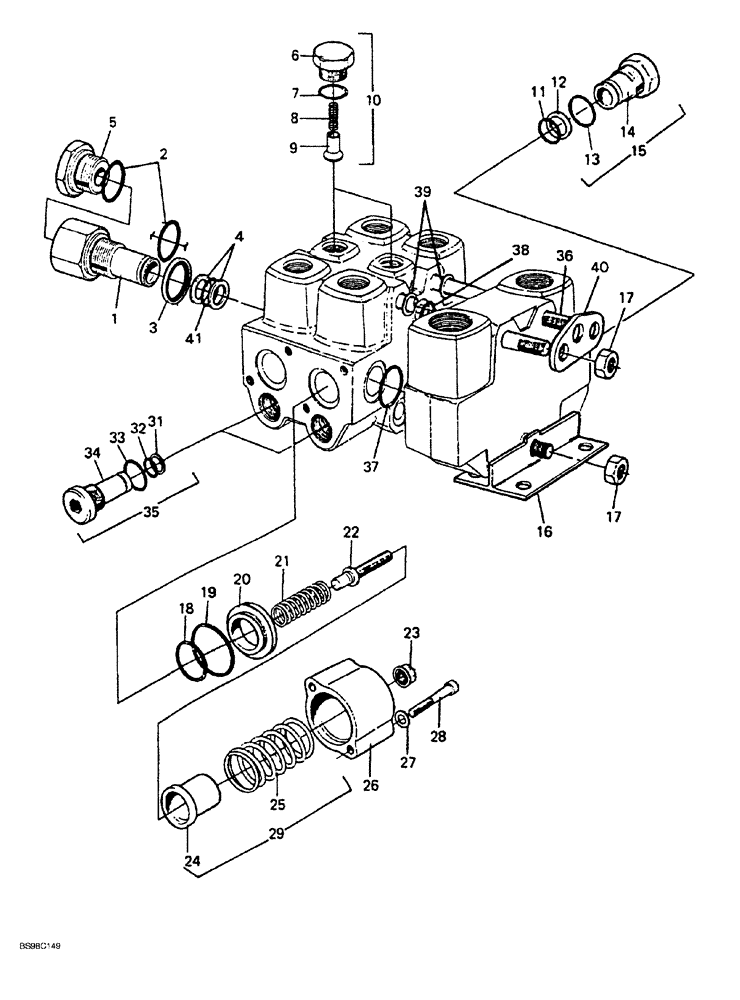

Запчасти Case 689G (08-52) - MAIN CONTROL VALVE, BOOM AND BOOM EXTENSION SECTION (08) - HYDRAULICS

317451A1

VALVE

SECTION ASSEMBLY, boom and boom extension, Includes: Ref. 1 - 42

1шт.

1

309488A1

PLUG

inlet

1шт.

2

309489A1

O-RING

inlet plug, outer

1шт.

3

309492A1

BACK-UP RING

1шт.

4

309490A1

SEAL

inlet plug inner

2шт.

5

318285A1

PLUG

hex

1шт.

6

309511A1

PLUG

check valve

2шт.

7

309509A1

O-RING

check valve plug

2шт.

8

309513A1

SPRING

poppet return

2шт.

9

309514A1

VALVE POPPET

check

2шт.

10

309378A1

VALVE, CHECK

ASSEMBLY, Includes: Ref. 6 thru 9 above

2шт.

11

309493A1

O-RING

plug, inner

1шт.

12

309494A1

SEAL

plug

1шт.

13

309496A1

O-RING

plug outer

1шт.

14

309495A1

PLUG

special

1шт.

15

309379A1

PLUG

ASSEMBLY special, Includes: Ref. 11 thru 14

1шт.

16

318292A1

PLATE

mounting

1шт.

17

318294A1

NUT

hex

2шт.

18

309497A1

O-RING

support ring, inner

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

19

309498A1

O-RING

support ring, outer

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

20

309499A1

BACK-UP RING

support

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

21

309505A1

SPRING

return

4шт.

22

309500A1

ADJUSTMENT SCREW

adjusting

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

23

309502A1

LOCK NUT

hex, self locking

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

24

309507A1

SLEEVE

spring

4шт.

25

309508A1

SPRING

return

4шт.

26

309501A1

CAP

port

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

27

309503A1

WASHER

flat

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

28

309504A1

SCREW

machine

4шт.

Part of Cap Kit, P/N 309381A1

1шт.

29

309380A1

KIT

spring, Includes: Ref. 21 , 24 and 25

4шт.

30

309381A1

KIT

cap, not shown

4шт.

31

309518A1

BACK-UP RING

4шт.

32

309519A1

O-RING

plug, inner

4шт.

33

309520A1

O-RING

plug, outer

4шт.

34

309516A1

PLUG

special

4шт.

35

309515A1

PLUG

ASSEMBLY special, Includes: Ref. 31 thru 34 above

4шт.

36

309434A1

TIE-ROD

TIE ROD

3шт.

37

309523A1

O-RING

, Serial Range: section-section

2шт.

38

309522A1

O-RING

, Serial Range: section-section

1шт.

39

309521A1

SPACER

RING

2шт.

40

309435A1

LUG

BRACKET lift

1шт.

41

309491A1

O-RING

plug

1шт.

42

309524A1

SEAL KIT

seal, not shown, Includes: Ref. 37 thru 39

1шт.
