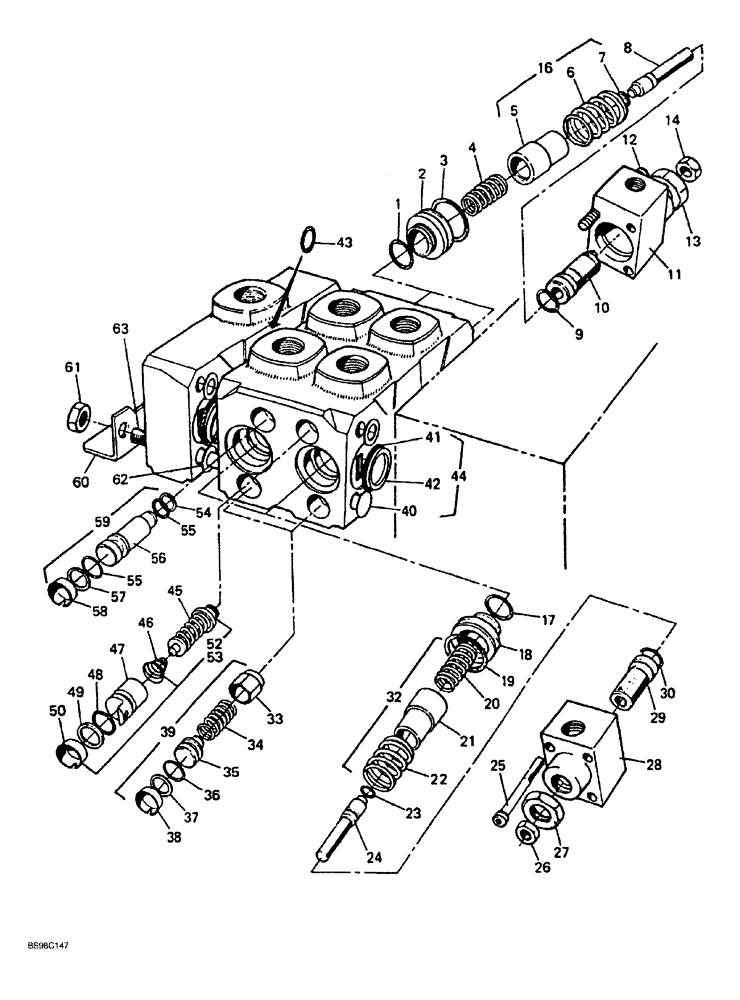

Запчасти Case 689G (08-46) - MAIN CONTROL VALVE, COMPENSATING AND LEVEL CONTROL SECTION (08) - HYDRAULICS

309433A1

VALVE, CONTROL

SECTION ASSEMBLY compensating and level control, parts list Figures 8-46 and 8-48, Includes: Ref. 1 - 63

1шт.

1

309481A1

O-RING

support ring, inner

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

2

NSS

NOT SOLD SEPARAT

RING support

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

3

309482A1

O-RING

support ring, outer

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

4

309476A1

SPRING

return

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING spring

2шт.

6

309479A1

SPRING

return

2шт.

7

309483A1

O-RING

adjusting screw

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

8

NSS

NOT SOLD SEPARAT

SCREW adjusting

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

9

309487A1

O-RING

stroke limiter screw

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW stroke limiter

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

11

NSS

NOT SOLD SEPARAT

COVER port, stroke limiter

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

12

309484A1

O-RING

SCREW machine

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

13

309485A1

NUT

hex

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

14

309486A1

NUT

hex

2шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

16

309373A1

KIT

spring, Includes: Ref. 4 thru 6

2шт.

17

309481A1

O-RING

support ring, inner

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

18

NSS

NOT SOLD SEPARAT

RING support

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

19

309482A1

O-RING

support ring, outer

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

20

309476A1

SPRING

return

2шт.

21

NSS

NOT SOLD SEPARAT

HOUSING spring

2шт.

22

309479A1

SPRING

return

2шт.

23

309483A1

O-RING

adjusting screw

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW adjusting

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

25

309484A1

O-RING

SCREW machine

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

26

309485A1

NUT

hex

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

27

309486A1

NUT

hex

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

28

NSS

NOT SOLD SEPARAT

COVER port, stroke limiter

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW stroke limiter

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

30

309487A1

O-RING

stroke limiter screw

2шт.

Part of Stroke Limiter Kit, P/N 309375A1

1шт.

32

309374A1

KIT

spring, Includes: Ref. 20 thru 22

2шт.

33

NSS

NOT SOLD SEPARAT

POPPET relief valve

4шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

34

309454A1

SPRING

return

4шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

35

NSS

NOT SOLD SEPARAT

GUIDE spring

4шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

36

309453A1

O-RING

spring guide

4шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

37

309449A1

BACK-UP RING

4шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

38

309452A1

CAP

port

4шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

39

317231A1

VALVE

ASSEMBLY check

4шт.

Part of Stroke Limiter Kit, P/N 317228A1

1шт.

40

309465A1

RING

spacer

8шт.

41

309468A1

O-RING

, Serial Range: section-section

4шт.

42

309474A1

BACK-UP RING

4шт.

43

309467A1

O-RING

, Serial Range: section-section

2шт.

44

309377A1

SEAL KIT

seal, Includes: Ref. 40 thru 43

2шт.

45

NSS

NOT SOLD SEPARAT

CARTRIDGE relief

2шт.

46

309455A1

SPRING

return

2шт.

47

NSS

NOT SOLD SEPARAT

PLUG special, spring stop

2шт.

48

309450A1

O-RING

plug

2шт.

49

309449A1

BACK-UP RING

2шт.

50

309448A1

CAP

port

2шт.

52

317232A1

VALVE

ASSEMBLY relief, side "A", Includes: Ref. 45, 46 and 50

1шт.

53

317233A1

VALVE

ASSEMBLY relief, side "B", Includes: Ref. 45, 46 and 50

1шт.

54

309449A1

BACK-UP RING

2шт.

55

309451A1

O-RING

plug inner

4шт.

56

NSS

NOT SOLD SEPARAT

PLUG special

2шт.

57

309449A1

BACK-UP RING

2шт.

58

309448A1

CAP

port

2шт.

59

317234A1

PLUG

ASSEMBLY special, Includes: Ref. 54 thru 58

2шт.

60

317235A1

PLATE

mounting

1шт.

61

309376A1

NUT

hex

2шт.

62

309463A1

WASHER

flat

4шт.

63

309437A1

TIE-ROD

TIE ROD valve sections

4шт.
