Запчасти Case 689G (02-06) - AIR CLEANER AND AIR INTAKE (02) - ENGINE

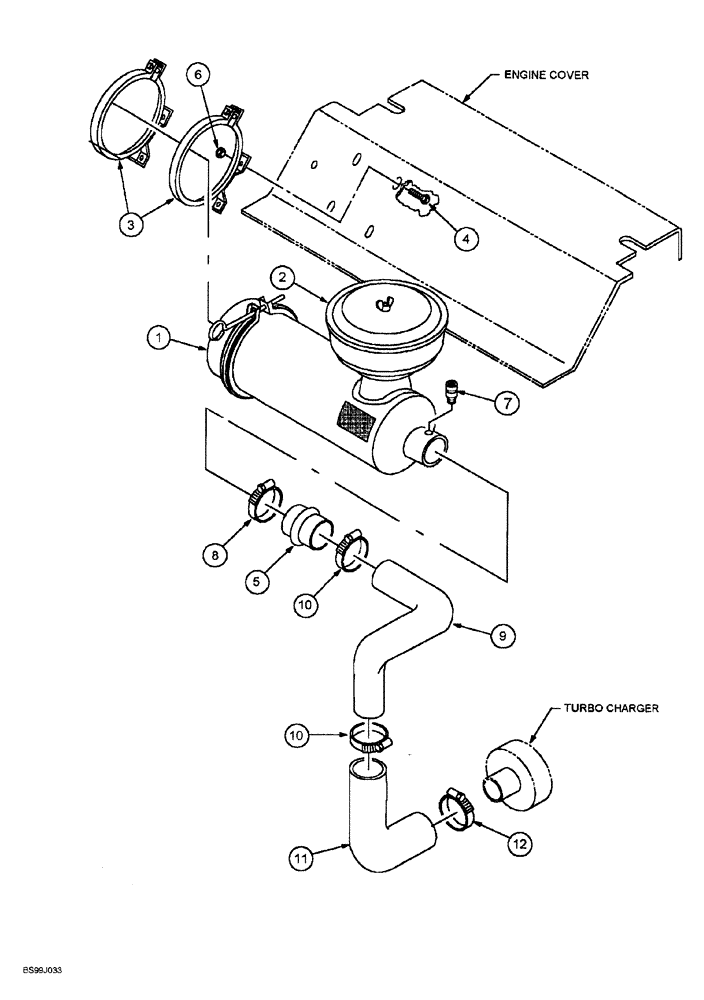

Схема запчастей Case 689G - (02-06) - AIR CLEANER AND AIR INTAKE (02) - ENGINE
3
2
12
7
10
8
5
11
6
9
4
10
1

Артикул

Название

Примечание

Количество

1

310068A1

AIR CLEANER

ASSEMBLY - air, engine, parts list Figure 2-08

1шт.

2

310063A1

PRECLEANER

air, Includes: Ref. 2A

1шт.

2a

309210A1

BOWL

sediment, precleaner, not shown

1шт.

3

309158A1

CLAMP

BAND mounting, air cleaner

2шт.

4

310023A1

BOLT

hex, self locking, 5/16 NC x 1 inch

4шт.

5

310461A1

REDUCER

HOSE

1шт.

6

309986A1

LOCK NUT

hex, 5/16 inch NC

4шт.

7

309925A1

INDICATOR

air restriction

1шт.

8

317791A1

CLAMP

hose

1шт.

9

309865A1

AIR INTAKE TUBE

air inlet

1шт.

10

317796A1

CLAMP

hose

2шт.

11

309864A1

INTAKE AIR HOSE

Inlet

1шт.

12

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

adj, 2-1/16, 3 inch dia

1шт.

Выбрано товаров: 13
