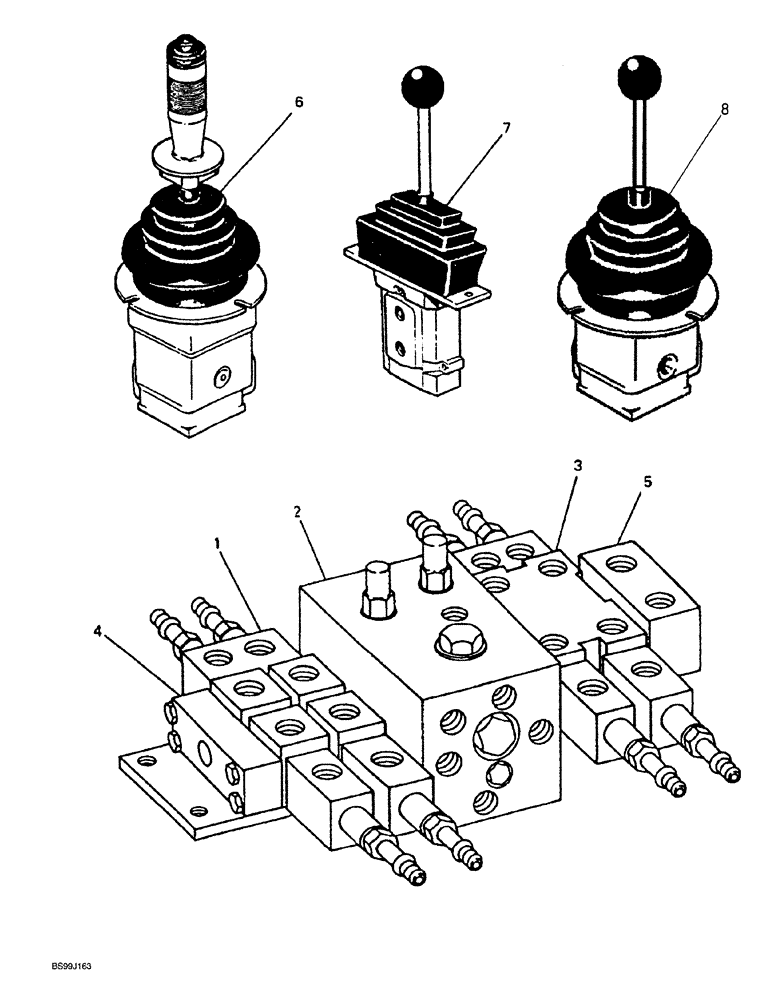

Запчасти Case 689G (08-44) - MAIN CONTROL AND CONTROLLER VALVES (08) - HYDRAULICS

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY- main hydraulic control, Includes: Ref. 1 - 5

1шт.

1

309433A1

VALVE, CONTROL

SECTION ASSEMBLY compensating and level control, parts list Figures 8-46 and 8-48

1шт.

2

309593A1

MANIFOLD

SECTION ASSEMBLY manifold, parts list Figure 8-50

1шт.

3

317451A1

VALVE

SECTION ASSEMBLY boom and boom extension parts list Figure 8-52

1шт.

4

309436A1

VALVE

SECTION outlet

1шт.

5

309420A1

VALVE BLOCK

SECTION inlet

1шт.

6

309415A1

CONTROL

VALVE ASSEMBLY joystick tilt and frame level, parts list Figure 8-56

1шт.

7

309416A1

CONTROL

VALVE ASSEMBLY joystick, auxiliary, if used, parts list Figure 8-58

1шт.

8

372402A1

CONTROL

VALVE ASSEMBLY joystick, boom parts list Figure 8-54

1шт.
