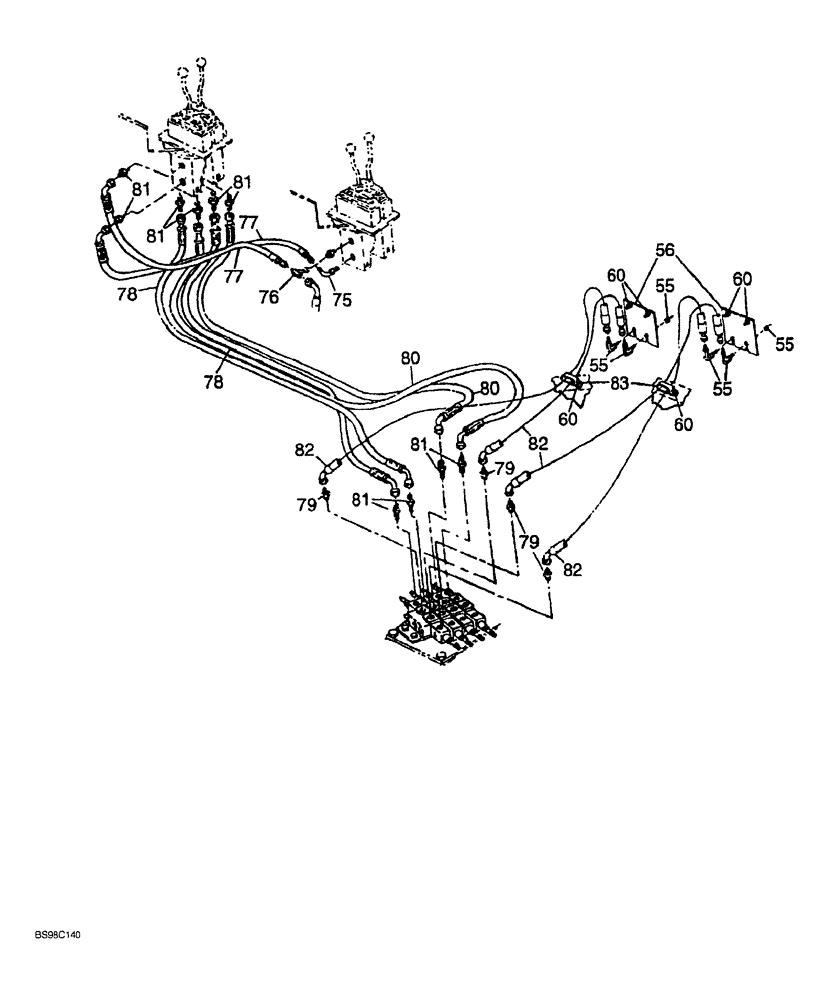

Запчасти Case 689G (08-36) - STABILIZER CYLINDER HYDRAULICS, LEVER CONTROL VALVE TO BULKHEAD (08) - HYDRAULICS

55

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.

56

310427A1

BRACKET

support, stabilizer hydraulics

2шт.

60

309986A1

LOCK NUT

hex, 5/16 inch NC

6шт.

75

309982A1

ADAPTER

straight

1шт.

76

309987A1

TEE

hydraulic

1шт.

77

309279A1

HOSE

254 mm (10 inch) long, lever control valve connecting

2шт.

78

309528A1

HOSE

356 mm (14 inch) long, lever control to main control valve

2шт.

79

309968A1

ADAPTER

straight

4шт.

80

310016A1

HOSE ASSY.

1524 mm (60 inch) long, lever control to main control valve

2шт.

81

309970A1

ADAPTER

straight

10шт.

82

315041A1

HOSE ASSY.

main control, Serial Range: valve-bulkhead.

4шт.

83

310412A1

CLAMP

hose

2шт.

84

309991A1

ADAPTER

not shown

1шт.

85

310127A1

HOSE ASSY.

not shown

1шт.

86

309979A1

ADAPTER

straight, not shown

1шт.
