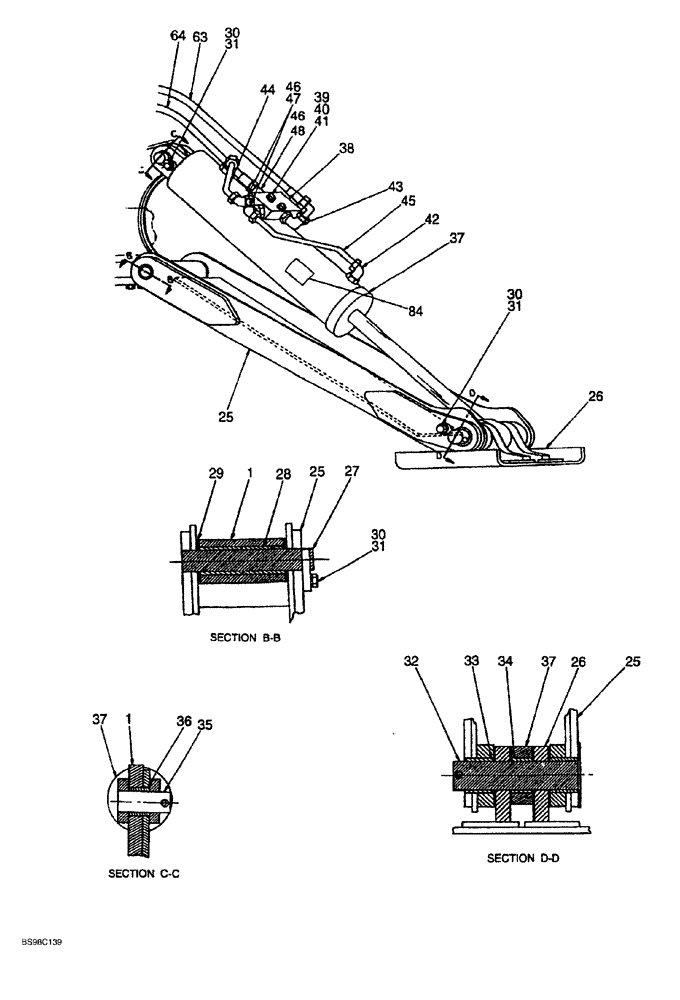

Запчасти Case 689G (08-34) - STABILIZER CYLINDER HYDRAULICS (08) - HYDRAULICS

25

310267A1

ARM

stabilizer

2шт.

26

310426A1

PAD

stabilizer, stablilizer, Serial Range: arm-frame

2шт.

27

310421A1

PIN

mounting

2шт.

28

310348A1

BUSHING

pin

4шт.

29

310377A1

WASHER

flat

4шт.

30

310379A1

BRACKET

RETAINER clevis pin

6шт.

31

310369A1

BOLT

flange

6шт.

32

310420A1

PIN

mounting, stabilizer, Serial Range: pad-arm

2шт.

33

310346A1

BUSHING

stabilizer pad mounting pin, outer

4шт.

34

310345A1

BUSHING

stabilizer cylinder, rod eye

2шт.

35

310416A1

PIN

mounting, stabilizer, Serial Range: cylinder-frame

2шт.

36

310347A1

BUSHING

stabilizer cylinder, tube end

2шт.

37

357111A1

CYLINDER ASSY.

stabilizer, component information not available at time of printing

2шт.

38

310457A1

VALVE

ASSEMBLY cushion, component information not available at time of printing

2шт.

39

426-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

4шт.

40

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

4шт.

41

492-11031

LOCK WASHER,5/16"

4шт.

42

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

43

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90°, 3/4-16 flare x 9/16-18 inch adj O ring boss

2шт.

44

310117A1

HYD TUBE

hydraulic, stabilizer cylinder, closed end

2шт.

45

310115A1

HYD TUBE

hydraulic, stabilizer cyllmder, rod end

2шт.

46

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

straight, 3/4-16 flare x 9/16-18 inch O-ring boss

6шт.

47

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

4шт.

48

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

2шт.

63

310096A1

HOSE ASSY.

stabilizer cylinder

2шт.

64

310094A1

HOSE ASSY.

stabilizer cylinder

2шт.

84

310008A1

DECAL

Warning, pinch point

4шт.
