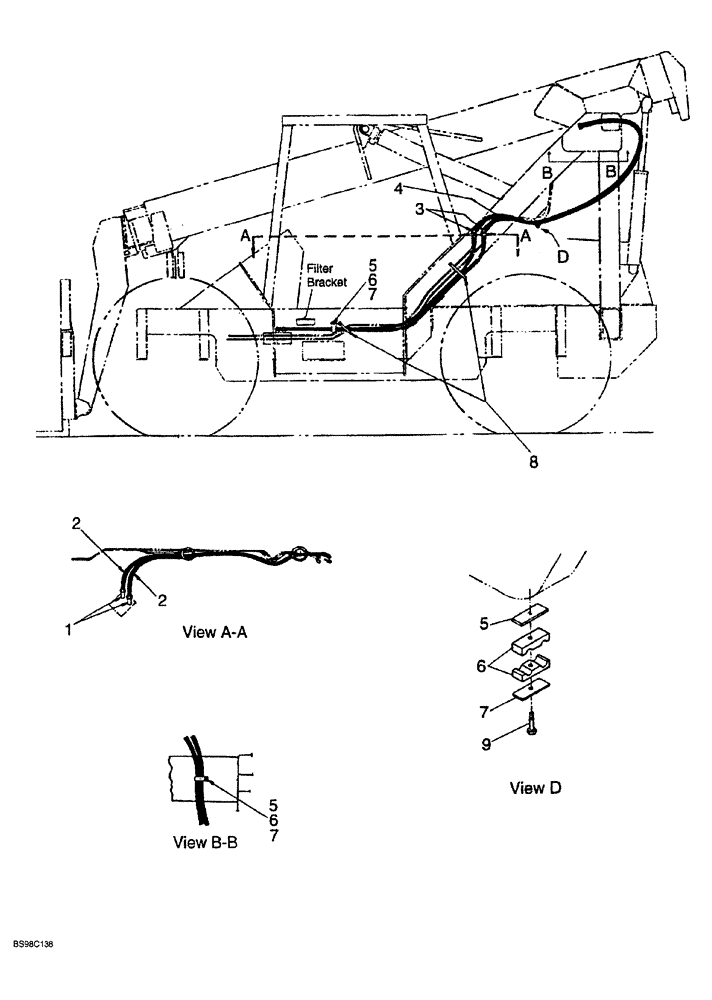

Запчасти Case 689G (08-32) - HOSE REEL HYDRAULICS (08) - HYDRAULICS

1

309968A1

ADAPTER

straight

2шт.

2

309351A1

HOSE

2235 mm (88 inch) long

2шт.

3

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

4

309352A1

HOSE

2413 mm (95 inch) long

2шт.

5

310081A1

PLATE

support, hose clamp

2шт.

6

310413A1

CLAMP

hose

3шт.

7

310384A1

LOCK NUT

3шт.

8

317797A1

STRAP

tie

2шт.

9

426-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

2шт.
