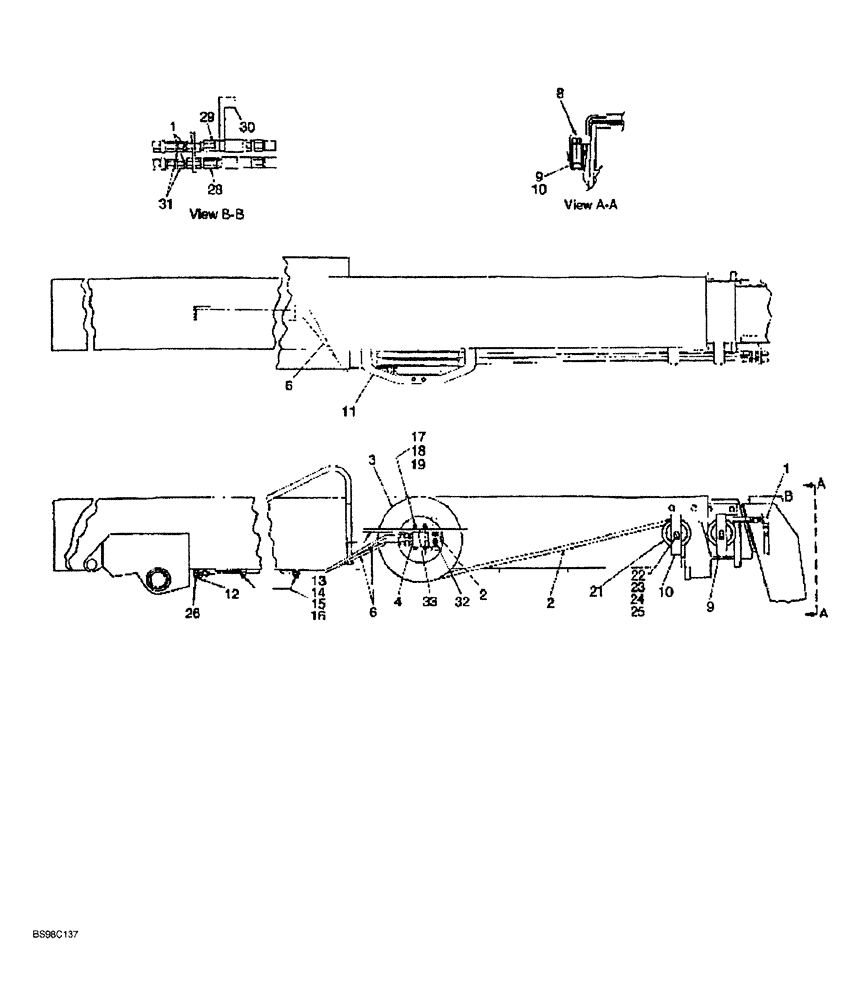

Запчасти Case 689G (08-30) - HOSE REEL WITH HYDRAULICS (08) - HYDRAULICS

1

318186A1

ADAPTER

hydraulic

2шт.

2

318187A1

HOSE

boom extension on reel

1шт.

3

318189A1

REEL

ASSEMBLY hose, Includes: Ref. 3A and 3B

1шт.

3a

318190A1

SEAL KIT

seal, not shown

1шт.

3b

318193A1

SPRING KIT

not shown

1шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

straight, 3/4-16 flare x 9/16-18 inch O ring boss

2шт.

6

318194A1

HOSE

boom, Serial Range: extension-reel

2шт.

8

318195A1

PLATE

support

1шт.

9

318196A1

BRACKET

sheave mounting

1шт.

10

318197A1

BRACKET

sheave mounting

1шт.

11

318198A1

BRACKET

mounting hose reel

1шт.

12

318199A1

PLATE

support

1шт.

13

318200A1

PLATE

clamp support

2шт.

14

318201A1

CLAMP

hose

2шт.

15

310076A1

PLATE

cover

2шт.

16

309986A1

LOCK NUT

hex, 5/16 inch NC

2шт.

17

426-864

BOLT,Hex, 1/2" - 13 x 4", Gr 8

hex, 1/2 NC x 4 inch grade 8

2шт.

18

309905A1

NUT

hex, 1/2 inch NC

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

21

314090A1

SHEAVE

ASSEMBLY hose, Includes: Ref. 21A

4шт.

21a

317798A1

BUSHING

sheave, not shown

1шт.

22

314089A1

PIN

retaining

2шт.

23

318202A1

BAR

keeper

2шт.

24

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

2шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

317794A1

UNION

hydraulic

2шт.

28

309940A1

COUPLING

return

1шт.

29

309939A1

COUPLING

hydraulic

1шт.

30

309938A1

PROTECTIVE COVER

dust

2шт.

31

318203A1

FITTING

REDUCER hydraulic, straight

2шт.

32

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

33

318204A1

SPACER

mounting

1шт.
