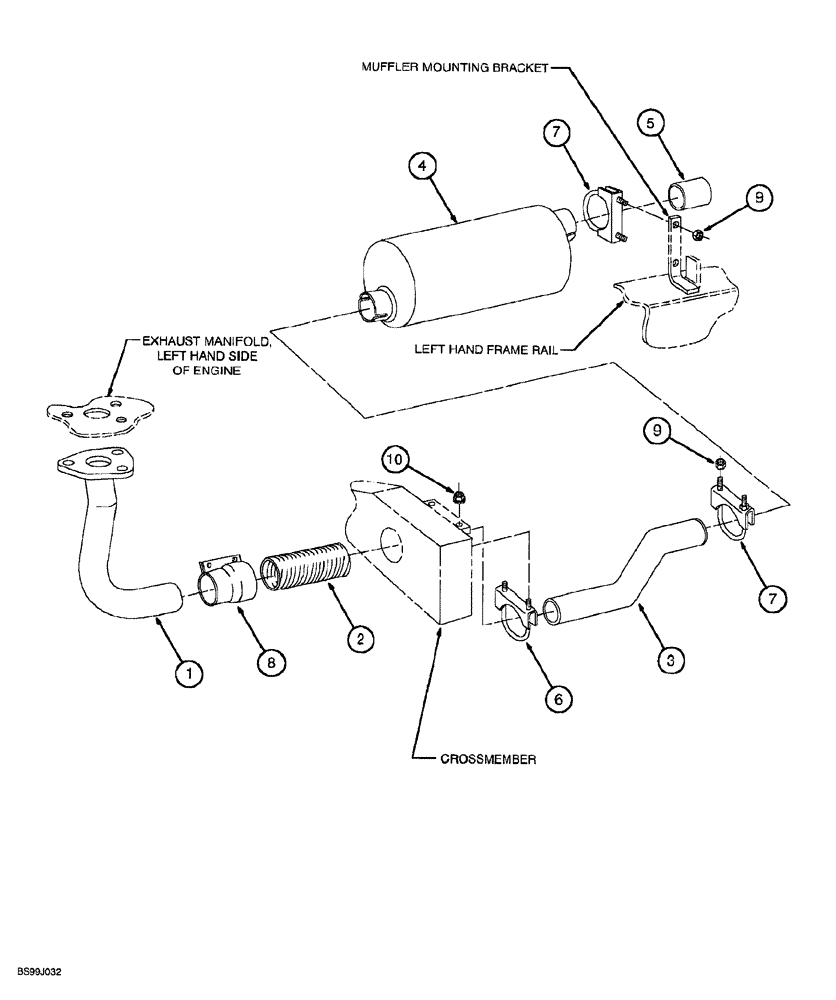

Запчасти Case 689G (02-04) - EXHAUST SYSTEM (02) - ENGINE

1

310260A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST flanged at manifold

1шт.

2

310444A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST flex

1шт.

3

310455A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST at muffler inlet

1шт.

4

310065A1

MUFFLER

exhaust

1шт.

5

310263A1

PIPE

tail

1шт.

6

310153A1

CLAMP

U-bolt type, at flex pipe outlet

1шт.

7

310154A1

CLAMP

U-bolt type, at muffler, both ends

2шт.

8

310446A1

CLAMP

special, at flex pipe inlet

1шт.

9

309986A1

LOCK NUT

hex, 5/16 inch NC

4шт.

10

310000A1

LOCK NUT

hex, 3/8 inch NC

2шт.
