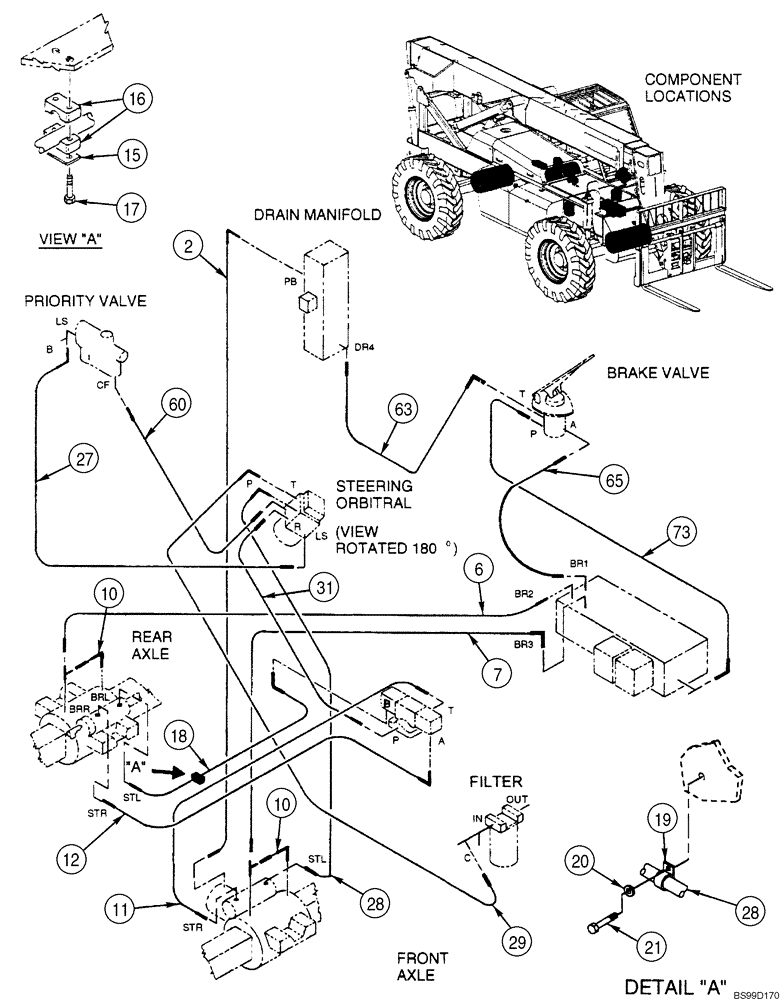

Запчасти Case 688G (5-06) - STEERING & BRAKE VALVE HYDRAULICS (SERIES 2 BSN 686GXR JFE0001848; 688G JFE0003613) (05) - STEERING

2

316979A1

HOSE ASSY.

1245 mm (49 in)

1шт.

6

316973A1

HOSE ASSY.

3067 mm (120-3/4 in)

1шт.

For Series 2 686GXR

1шт.

6

365028A1

HOSE ASSY.

1шт.

For Series 2 688G

1шт.

7

326692A1

HOSE ASSY.

838 mm (33 in)

1шт.

10

316955A1

HOSE ASSY.

356 mm (14 in)

2шт.

11

317499A1

HOSE ASSY.

1232 mm (48-1/2 in)

1шт.

For Series 2 686GXR

1шт.

11

365778A1

HOSE ASSY.

1шт.

For Series 2 688G

1шт.

12

366428A1

HOSE ASSY.

1956 mm (77 in)

1шт.

For Series 2 686GXR

1шт.

12

365779A1

HOSE ASSY.

1шт.

For Series 2 688G

1шт.

15

310072A1

PLATE

1шт.

16

318039A1

CLAMP

2шт.

17

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

1/4 x 1-1/2 in

1шт.

18

366429A1

HOSE ASSY.

2388 mm (94 in)

1шт.

For Series 2 686GXR

1шт.

18

365780A1

HOSE ASSY.

1шт.

For Series 2 688G

1шт.

19

310407A1

CLAMP

1шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

27

365781A1

HOSE ASSY.

1шт.

28

365782A1

HOSE ASSY.

1шт.

If Used

1шт.

28

365452A1

HOSE ASSY.

1шт.

Cab Models

1шт.

If Used

1шт.

29

317484A1

HOSE ASSY.

1шт.

31

365784A1

HOSE ASSY.

1шт.

60

317026A1

HOSE ASSY.

1600 mm (63 in)

1шт.

63

316985A1

HOSE ASSY.

1003 mm (39-1/2 in)

1шт.

65

365785A1

HOSE ASSY.

1шт.

73

365786A1

HOSE ASSY.

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
